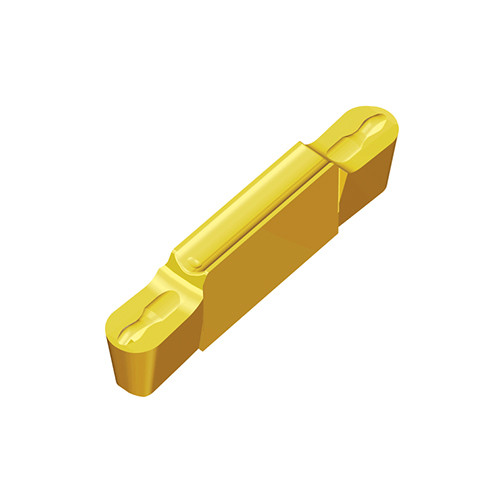

Taegutec TDT 4.00E-2.00 TT9080

Product Code: 6402318

$58.25$52.95 Ex. GST

Product Code: 6402318 SKU 6402318 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Precision double-ended inserts for Eternal grooving and profiling

Weight	0.0052 kg
barcode

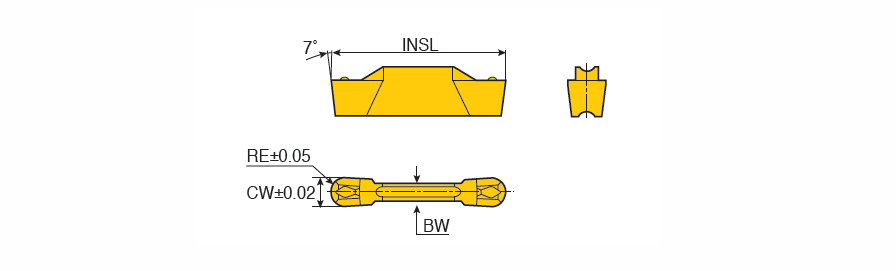

Additional Information	Cutting Width (CW): 4 mm Application:, Ext. Grooving, Ext. Grooving & Turning, Ext. Profiling, Ext. Undercut, Inserts, Int. Profiling, Int. Undercut & Turning, Corner Radius (RE): 2 mm Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Thread Pitch Maximum (TPX): 4.7 mm Insert Seat Size Code (SSC): 4 Insert Length (INSL): 20 mm Measurement Type: Metric Coating: TiAlN+TiN Body Material: Carbide Grade: TT9080 Unit: M Cutting Edge Material: Carbide
