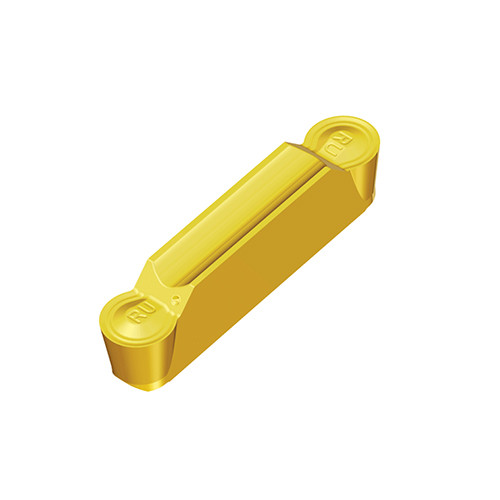

Taegutec TDT 4E-2.0-RU TT7505

Product Code: 6178198

$37.86$34.42 Ex. GST

Product Code: 6178198 SKU 6178198 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

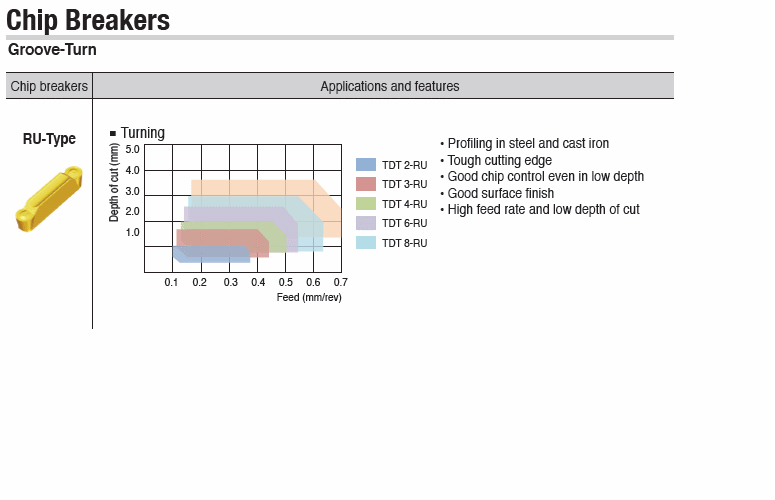

Double-ended pressed inserts for profiling, turning & grooving with stable cutting edge & good chip control when machining steel & cast iron

Additional information

Weight 0.0054 kg
barcode
Additional Information

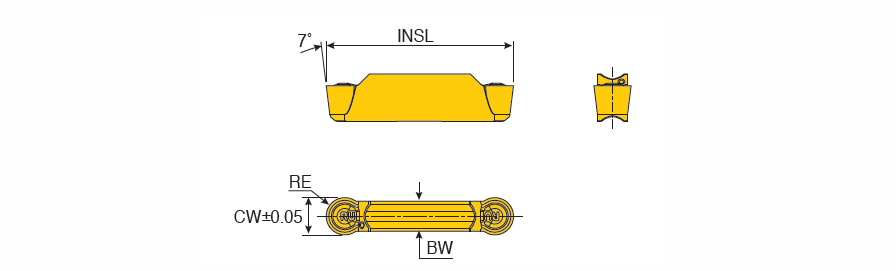

Cutting Width (CW): 4 mm
Application:, Ext. Grooving, Ext. Grooving & Turning, Ext. Profiling, Ext. Undercut, Inserts, Int. Profiling, Int. Undercut & Turning, Corner Radius (RE): 2 mm
Applicable Material:, Cast Iron, Thread Pitch Maximum (TPX): 4.7 mm
Insert Seat Size Code (SSC): 4
Insert Length (INSL): 20 mm
Measurement Type: Metric
Coating: TiCN+Al2O3+TiN
Body Material: Carbide
Grade: TT7505
Unit: M
Cutting Edge Material: Carbide

Brand

Taegutec
