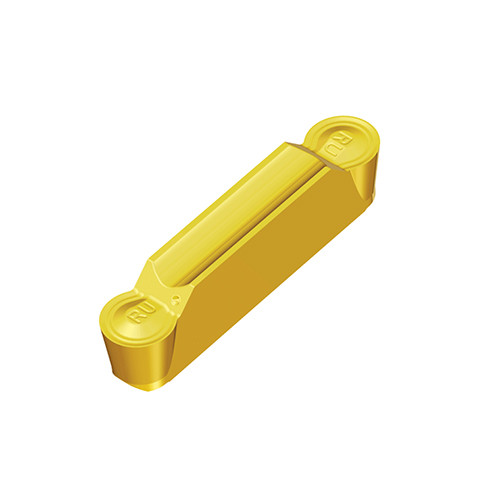

Taegutec TDT 5E-2.5-RU CT3000

Product Code: 5802079

$37.63$34.21 Ex. GST

Product Code: 5802079 SKU 5802079 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

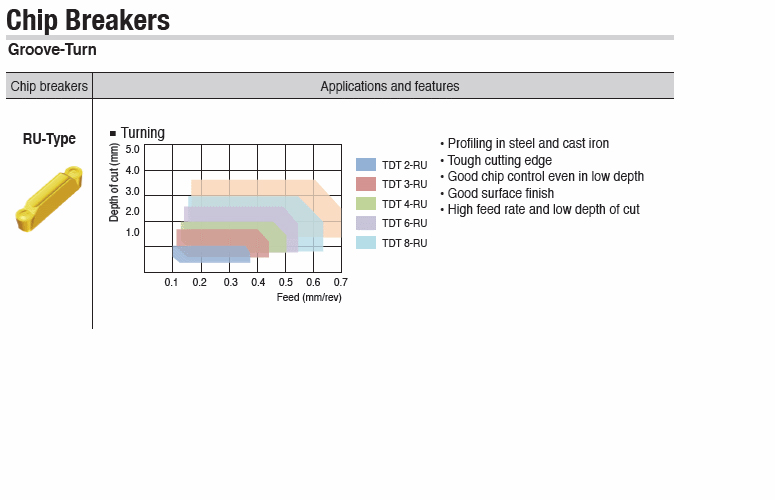

Double-ended pressed inserts for profiling, turning & grooving with stable cutting edge & good chip control when machining steel & cast iron

Additional information

Weight 0.0034 kg
barcode
Additional Information

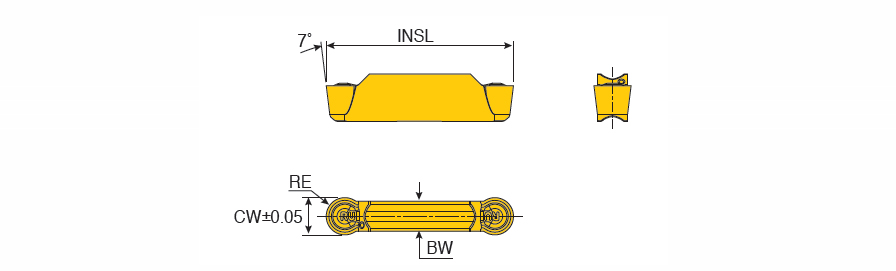

Cutting Width (CW): 5 mm
Application:, Ext. Grooving, Ext. Grooving & Turning, Ext. Profiling, Ext. Undercut, Inserts, Int. Profiling, Int. Undercut & Turning, Corner Radius (RE): 2.5 mm
Applicable Material:, Steel, Stainless Steel, Cast Iron, Thread Pitch Maximum (TPX): 5.2 mm
Insert Seat Size Code (SSC): 5
Insert Length (INSL): 25 mm
Measurement Type: Metric
Coating: Cermet
Body Material: Carbide
Grade: CT3000
Unit: M
Cutting Edge Material: Cermet

Brand

Taegutec
