Taegutec TDT 5E-2.5-RU TT5100

Product Code: 6401166

$40.56$36.87 Ex. GST

Product Code: 6401166 SKU 6401166 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

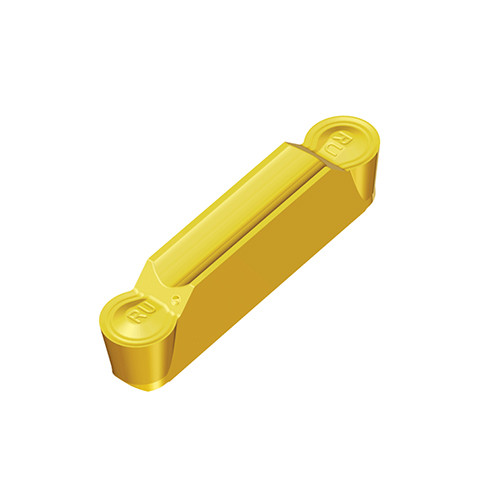

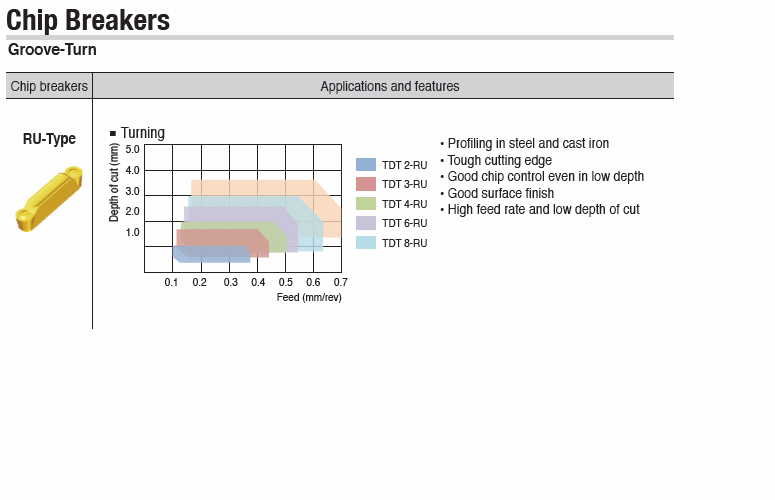

Double-ended pressed inserts for profiling, turning & grooving with stable cutting edge & good chip control when machining steel & cast iron

Weight	0.0090 kg
barcode

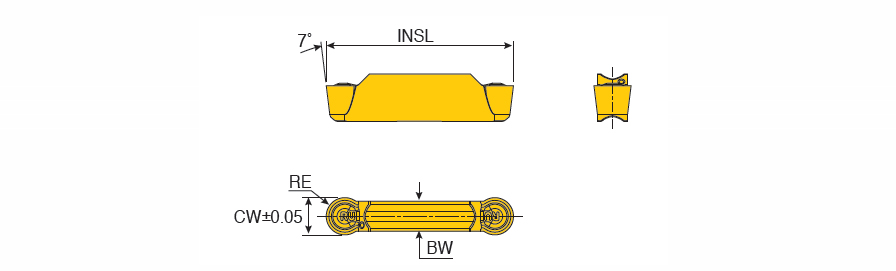

Additional Information	Cutting Width (CW): 5 mm Application:, Ext. Grooving, Ext. Grooving & Turning, Ext. Profiling, Ext. Undercut, Inserts, Int. Profiling, Int. Undercut & Turning, Corner Radius (RE): 2.5 mm Applicable Material:, Steel, Stainless Steel, Thread Pitch Maximum (TPX): 5.2 mm Insert Seat Size Code (SSC): 5 Insert Length (INSL): 25 mm Measurement Type: Metric Coating: TiCN+Al2O3+TiN Body Material: Carbide Grade: TT5100 Unit: M Cutting Edge Material: Carbide
