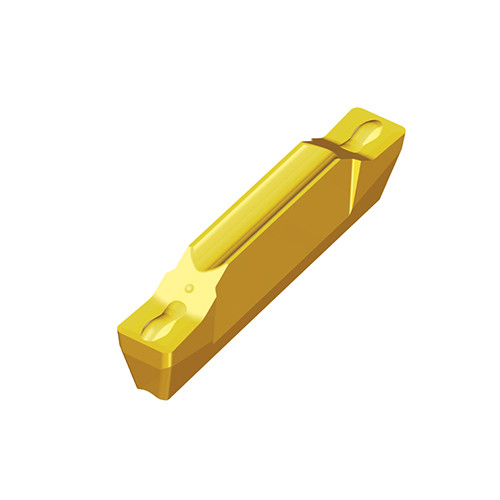

Taegutec TDXT 5E-0.4 TT6080

Product Code: 6224478

$49.14$44.67 Ex. GST

Product Code: 6224478 SKU 6224478 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Pressed double-ended inserts for External, Internal, Face machining with Grooving and Turning

Weight	0.0088 kg
barcode

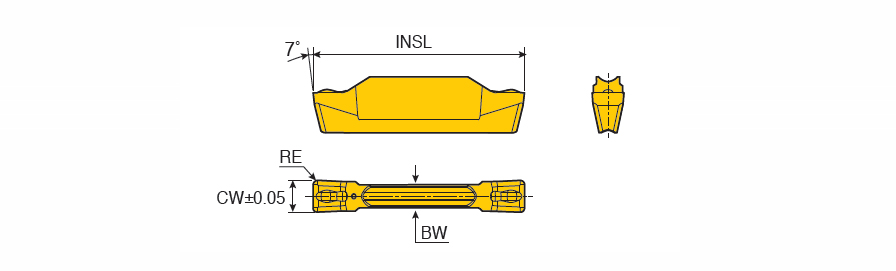

Additional Information	Cutting Width (CW): 5 mm Application:, Ext. Grooving, Ext. Grooving & Turning, Face Grooving, Face Grooving & Turning, Face Grooving Along Shaft, Inserts, Int. Face Grooving, Int. Face Grooving & Turning, Int. Groove & Turn, Int. Grooving, Parting, Corner Radius (RE): 0.4 mm Applicable Material:, Cast Iron, Hard Materials, Thread Pitch Maximum (TPX): 5.2 mm Insert Seat Size Code (SSC): 5 Insert Length (INSL): 25 mm Measurement Type: Metric Coating: AlTiN+TiN Body Material: Carbide Grade: TT6080 Unit: M Cutting Edge Material: Carbide
