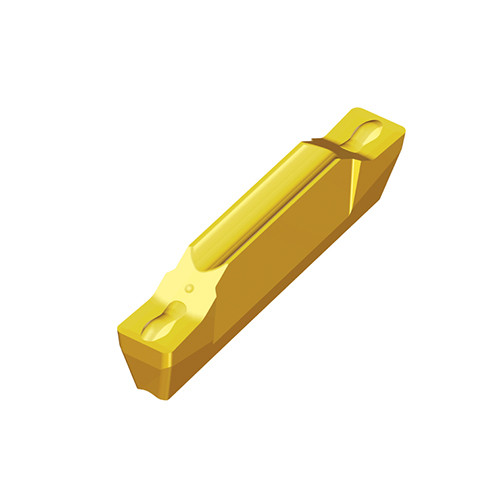

Taegutec TDXT 8E-0.8 TT9080

Product Code: 6180224

$59.25$53.86 Ex. GST

Product Code: 6180224 SKU 6180224 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Pressed double-ended inserts for External, Internal, Face machining with Grooving and Turning

Additional information

Weight 0.0189 kg
barcode
Additional Information

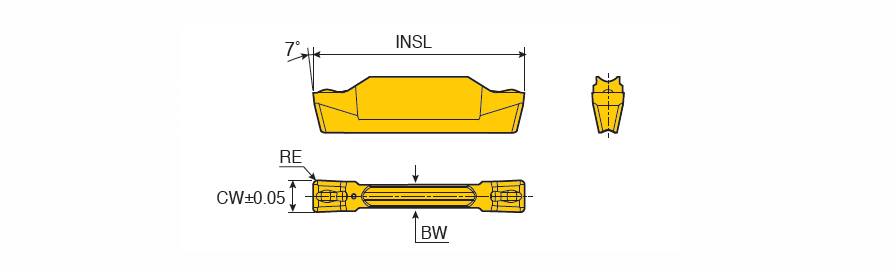

Cutting Width (CW): 8 mm
Application:, Ext. Grooving, Ext. Grooving & Turning, Face Grooving, Face Grooving & Turning, Face Grooving Along Shaft, Inserts, Int. Face Grooving, Int. Face Grooving & Turning, Int. Groove & Turn, Int. Grooving, Parting, Corner Radius (RE): 0.8 mm
Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Thread Pitch Maximum (TPX): 6.4 mm
Insert Seat Size Code (SSC): 8
Insert Length (INSL): 30 mm
Measurement Type: Metric
Coating: TiAlN+TiN
Body Material: Carbide
Grade: TT9080
Unit: M
Cutting Edge Material: Carbide

Brand

Taegutec
