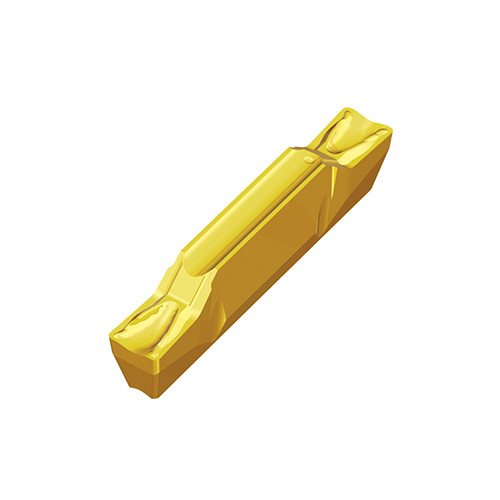

Taegutec TDXU 6E-0.4 TT7220

Product Code: 6401444

$54.37$49.43 Ex. GST

Product Code: 6401444 SKU 6401444 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

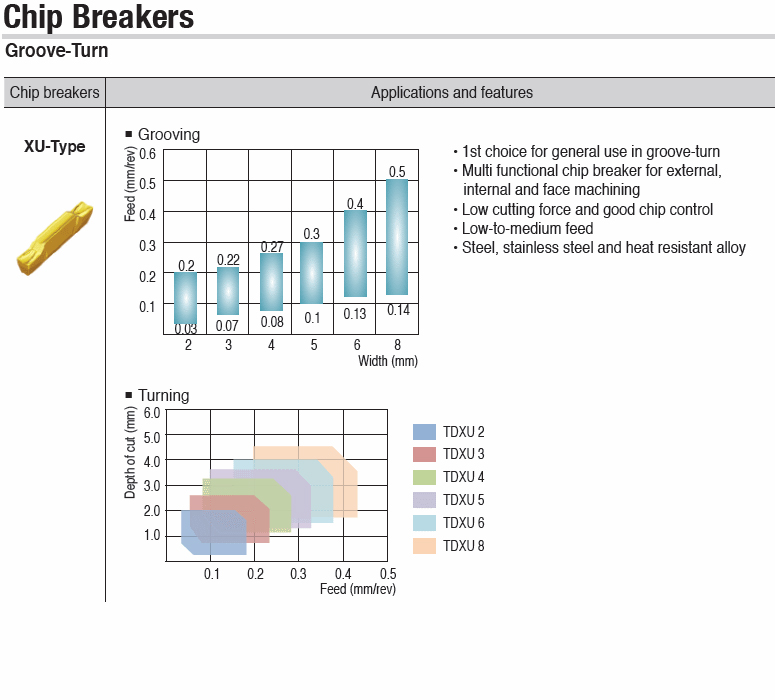

Double-ended pressed type multi functional 1st choice inserts for general use in external, internal & face groove-turn machining

Additional information

Weight 0.0098 kg
barcode
Additional Information

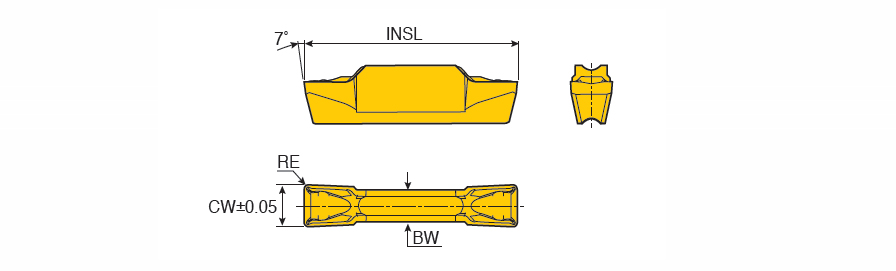

Cutting Width (CW): 6 mm
Application:, Ext. Grooving, Ext. Grooving & Turning, Face Grooving, Face Grooving & Turning, Face Grooving Along Shaft, Inserts, Int. Face Grooving, Int. Face Grooving & Turning, Int. Groove & Turn, Int. Grooving, Parting, Corner Radius (RE): 0.4 mm
Applicable Material:, Steel, Stainless Steel, Thread Pitch Maximum (TPX): 5.2 mm
Insert Seat Size Code (SSC): 6
Insert Length (INSL): 25 mm
Measurement Type: Metric
Coating: TiCN
Body Material: Carbide
Grade: TT7220
Unit: M
Cutting Edge Material: Carbide

Brand

Taegutec
