Taegutec TE90AP 332-M16-17

Product Code: 3103024

$616.46$560.42 Ex. GST

Product Code: 3103024 SKU 3103024 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

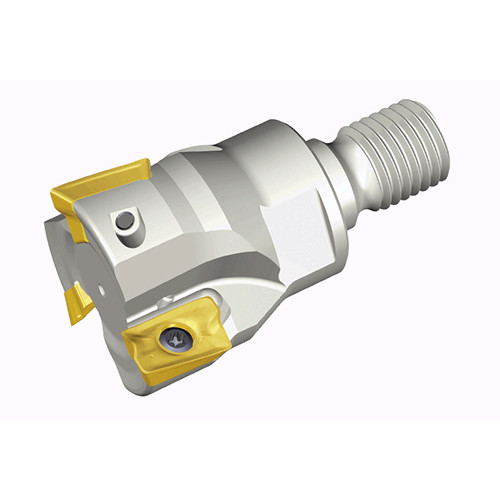

90° Modular end mills with T-FLEXTEC adaptation & high positive two helical cutting edges of AP.. 17 inserts

Weight	0.2800 kg
Dimensions
barcode

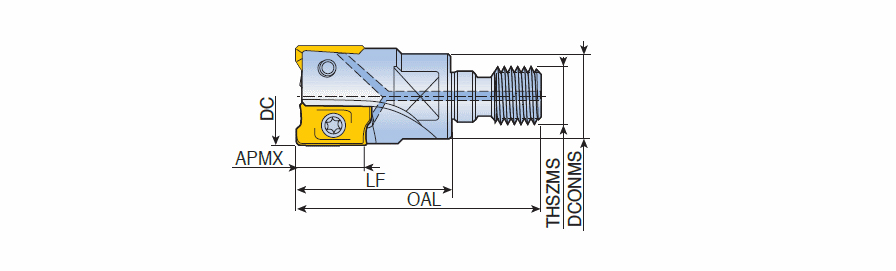

Additional Information	Cutting Diameter (DC/DCX): 32 mm Master Insert Identification (MIID): APKT 1705 PER-EM Cutting Diameter (DC): 32 mm Head Length (LH): 43 mm Cutting Item Count (CICT): 3 Connection Thread Nominal Size Machine Side (THSZMS): M16 Depth of Cut Maximum (APMX): 16.1 mm Measurement Type: Metric Overall Length (OAL): 68 mm Body Material: Steel Application:, Facing, Helical Interpolation, Rampdown, Shouldering, Slotting, Unit: M
