Taegutec TE90AP 332-W25-12-L-C

Product Code: 6162136

$711.19$646.54 Ex. GST

Product Code: 6162136 SKU 6162136 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

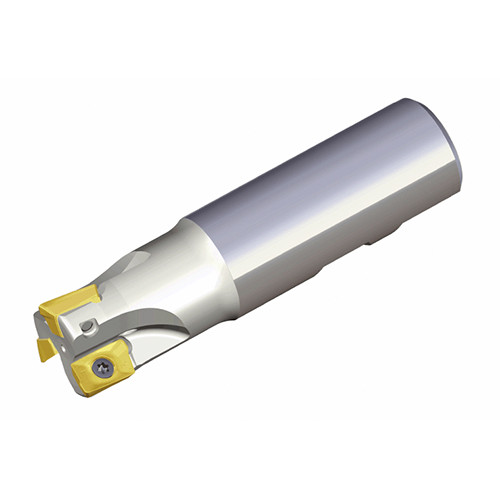

90° End mills with high positive two helical cutting edges of APKT 12 inserts

Weight	0.6350 kg
Dimensions
barcode

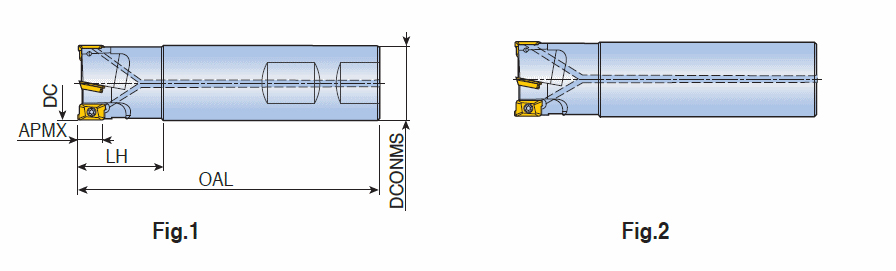

Additional Information	Cutting Diameter (DC/DCX): 32 mm Connection Diameter Machine Side (DCONMS): 25 mm Cutting Diameter (DC): 32 mm Master Insert Identification (MIID): APKT 1204 PER-EM Cutting Item Count (CICT): 3 Head Length (LH): 35 mm Depth of Cut Maximum (APMX): 12 mm Measurement Type: Metric Overall Length (OAL): 155 mm Body Material: Steel Shank Type: Weldon Unit: M Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting
