Taegutec TE90AP 540-W32-12-C

Product Code: 6162137

$811.40$737.64 Ex. GST

Product Code: 6162137 SKU 6162137 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

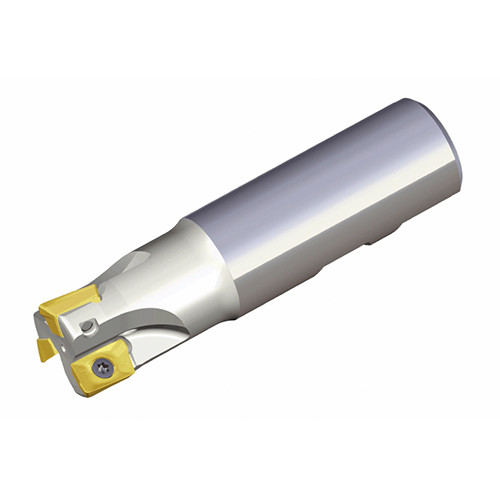

Taegutec TE90AP 540-W32-12-C

Taegutec TE90AP 540-W32-12-C - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

90° End mills with high positive two helical cutting edges of APKT 12 inserts

Additional information

Weight	0.7600 kg
Dimensions
barcode

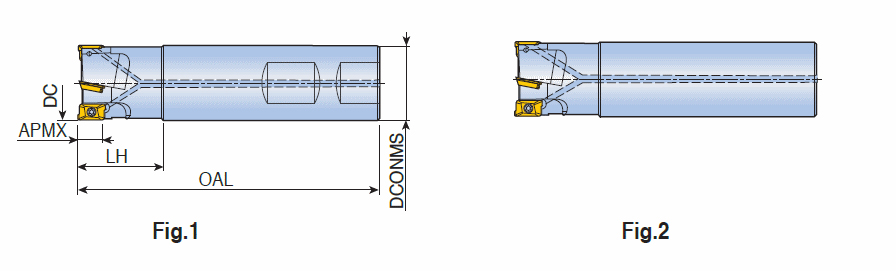

Additional Information	Cutting Diameter (DC/DCX): 40 mm Connection Diameter Machine Side (DCONMS): 32 mm Cutting Diameter (DC): 40 mm Master Insert Identification (MIID): APKT 1204 PER-EM Cutting Item Count (CICT): 5 Head Length (LH): 45 mm Depth of Cut Maximum (APMX): 12 mm Measurement Type: Metric Overall Length (OAL): 115 mm Body Material: Steel Shank Type: Weldon Unit: M Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting

Brand

Taegutec
