Taegutec TE90AV-218-W16-10

Product Code: 6234534

$493.53$448.66 Ex. GST

Product Code: 6234534 SKU 6234534 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

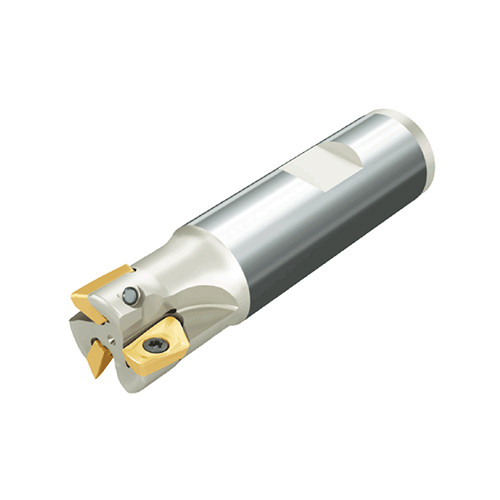

Taegutec TE90AV-218-W16-10

Taegutec TE90AV-218-W16-10 - Image 2

Taegutec TE90AV-218-W16-10 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

90° End mills with high productivity AVK(C)T inserts for shoulder milling

Additional information

Weight	0.1850 kg
Dimensions
barcode

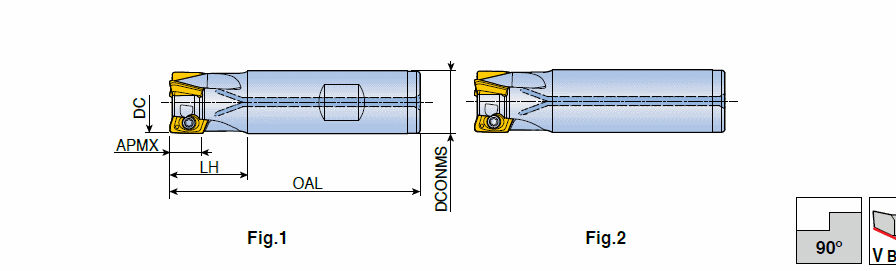

Additional Information	Cutting Diameter (DC/DCX): 18 mm Master Insert Identification (MIID): AVKT 1004 PER-M Cutting Diameter (DC): 18 mm Body Material: Steel Cutting Item Count (CICT): 2 Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting, Step down machining, Depth of Cut Maximum (APMX): 10 mm Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 16 mm Unit: M Overall Length (OAL): 10 mm

Brand

Taegutec
