Taegutec TE90AV-320-M10-10

Product Code: 6247692

$534.13$485.57 Ex. GST

Product Code: 6247692 SKU 6247692 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

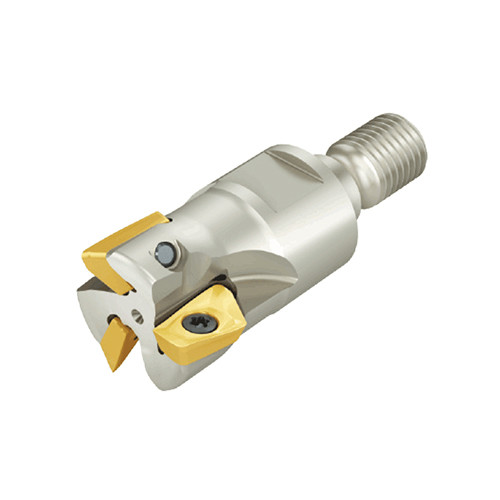

Modular 90° end mills with T-FLEXTEC adaptation & high productivity AVK(C)T inserts

Weight	0.1200 kg
Dimensions
barcode

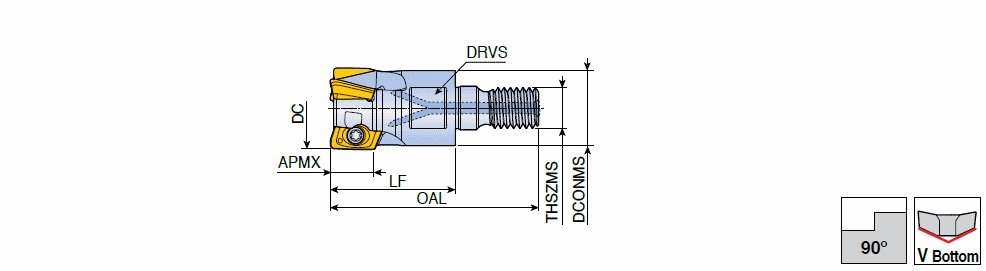

Additional Information	Cutting Diameter (DC/DCX): 20 mm Connection Diameter Machine Side (DCONMS): 18 mm Cutting Diameter (DC): 20 mm Master Insert Identification (MIID): AVKT 1004 PER-M Cutting Item Count (CICT): 3 Functional Length (LF): 30 mm Depth of Cut Maximum (APMX): 10 mm Measurement Type: Metric Overall Length (OAL): 50 mm Body Material: Steel Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting, Step down machining, Unit: M
