Taegutec TE90AX 210-09-06-L120

Product Code: 3108210

$413.93$376.30 Ex. GST

Product Code: 3108210 SKU 3108210 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

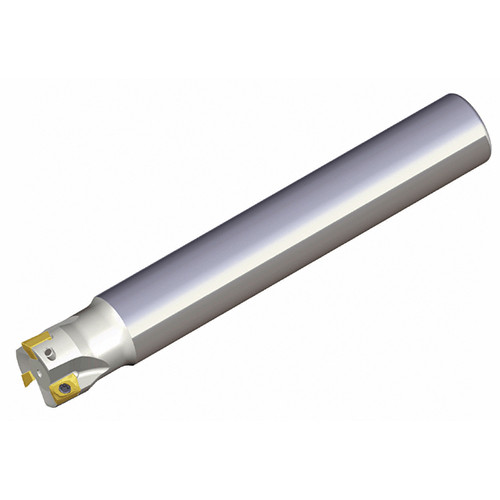

90° End mills with high positive two helical cutting edges inserts of AXMT 06 for small part machining

Weight	0.1150 kg
Dimensions
barcode

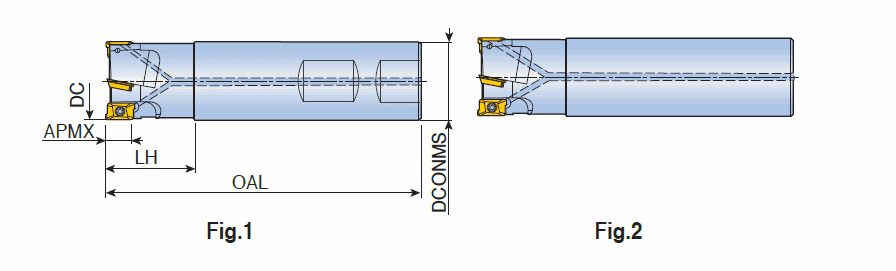

Additional Information	Cutting Diameter (DC/DCX): 10 mm Connection Diameter Machine Side (DCONMS): 9 mm Cutting Diameter (DC): 10 mm Master Insert Identification (MIID): AXMT 0602 PER-EM Cutting Item Count (CICT): 2 Head Length (LH): 17 mm Depth of Cut Maximum (APMX): 5.5 mm Measurement Type: Metric Overall Length (OAL): 120 mm Body Material: Steel Shank Type: Round Unit: M Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting
