Taegutec TE90AX 210-M06-06

Product Code: 6162333

$423.39$384.90 Ex. GST

Product Code: 6162333 SKU 6162333 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

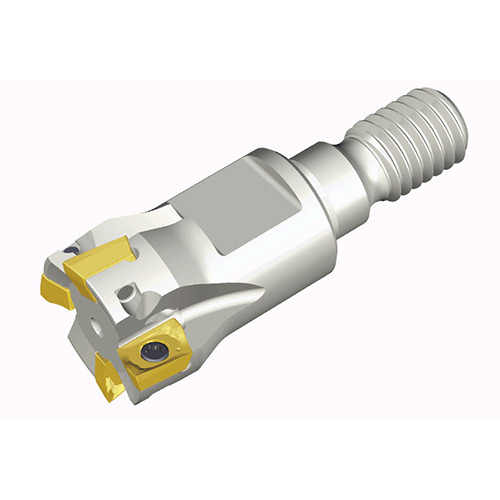

90° End mills with T-FLEXTEC modular adaptation & high positive two helical cutting edges of AXMT 06 inserts

Weight	0.0600 kg
Dimensions
barcode

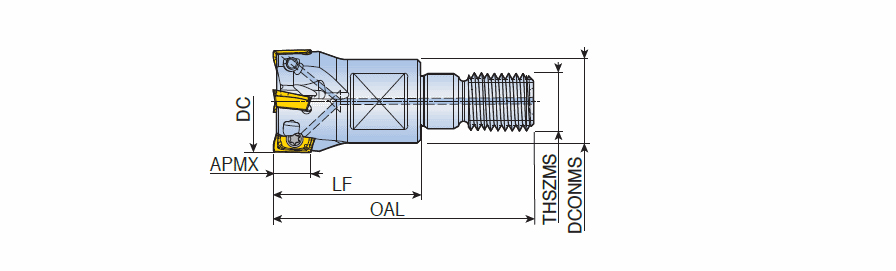

Additional Information	Cutting Diameter (DC/DCX): 10 mm Master Insert Identification (MIID): AXMT 0602 PER-EM Cutting Diameter (DC): 10 mm Head Length (LH): 17 mm Cutting Item Count (CICT): 2 Connection Thread Nominal Size Machine Side (THSZMS): M06 Depth of Cut Maximum (APMX): 5.5 mm Measurement Type: Metric Overall Length (OAL): 31.5 mm Body Material: Steel Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting, Unit: M
