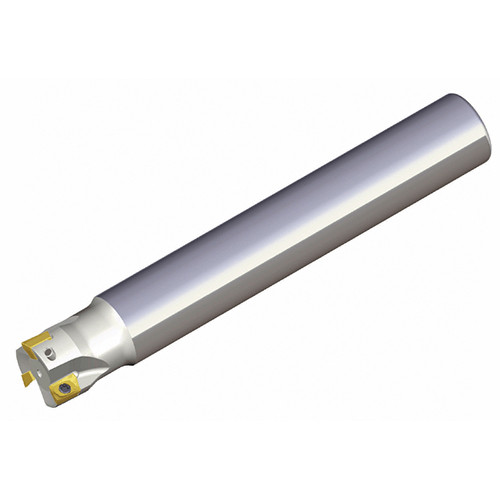

Taegutec TE90AX 418-16-06-L

Product Code: 3112496

$509.04$462.76 Ex. GST

Product Code: 3112496 SKU 3112496 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Taegutec TE90AX 418-16-06-L

Taegutec TE90AX 418-16-06-L - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

90° End mills with high positive two helical cutting edges inserts of AXMT 06 for small part machining

Additional information

Weight	0.2750 kg
Dimensions
barcode

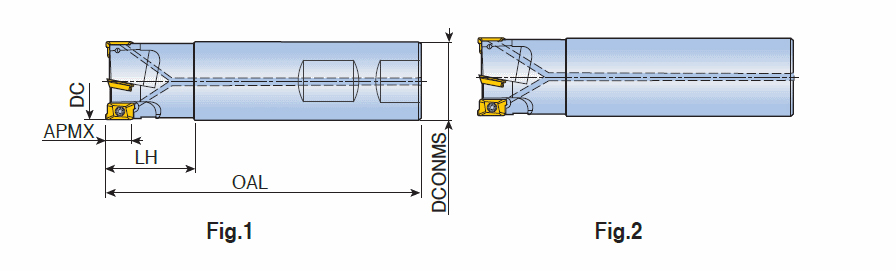

Additional Information	Cutting Diameter (DC/DCX): 18 mm Connection Diameter Machine Side (DCONMS): 16 mm Cutting Diameter (DC): 18 mm Master Insert Identification (MIID): AXMT 0602 PER-EM Cutting Item Count (CICT): 4 Head Length (LH): 20 mm Depth of Cut Maximum (APMX): 5.5 mm Measurement Type: Metric Overall Length (OAL): 150 mm Body Material: Steel Shank Type: Round Unit: M Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting

Brand

Taegutec
