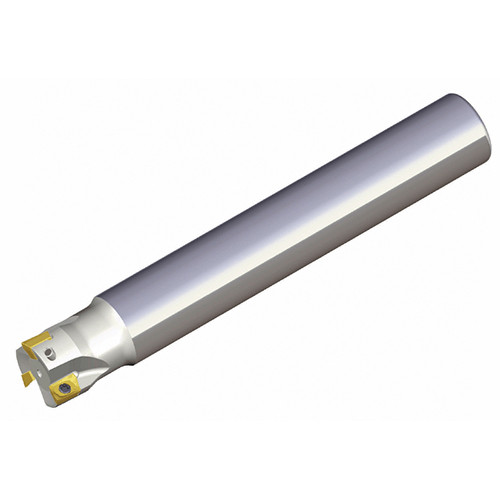

Taegutec TE90AX 419-W16-06

Product Code: 3112497

$548.45$498.59 Ex. GST

Product Code: 3112497 SKU 3112497 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

90° End mills with high positive two helical cutting edges inserts of AXMT 06 for small part machining

Weight	0.1850 kg
Dimensions
barcode

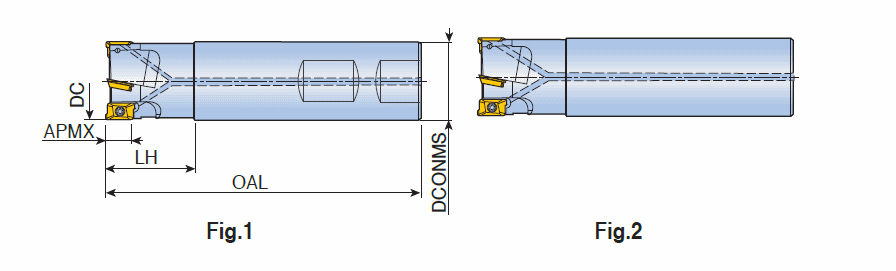

Additional Information	Cutting Diameter (DC/DCX): 19 mm Connection Diameter Machine Side (DCONMS): 16 mm Cutting Diameter (DC): 19 mm Master Insert Identification (MIID): AXMT 0602 PER-EM Cutting Item Count (CICT): 4 Head Length (LH): 20 mm Depth of Cut Maximum (APMX): 5.5 mm Measurement Type: Metric Overall Length (OAL): 90 mm Body Material: Steel Shank Type: Weldon Unit: M Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting
