Taegutec TE90AX 520-M10-06

Product Code: 6162084

$618.16$561.96 Ex. GST

Product Code: 6162084 SKU 6162084 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

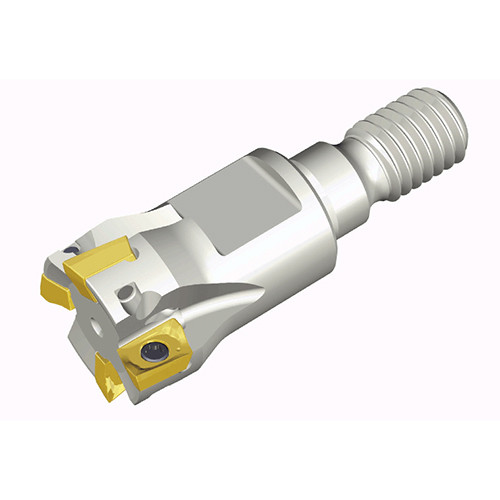

90° End mills with T-FLEXTEC modular adaptation & high positive two helical cutting edges of AXMT 06 inserts

Weight	0.1150 kg
Dimensions
barcode

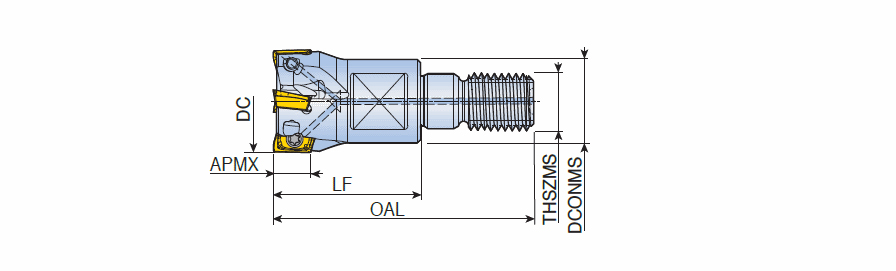

Additional Information	Cutting Diameter (DC/DCX): 20 mm Master Insert Identification (MIID): AXMT 0602 PER-EM Cutting Diameter (DC): 20 mm Head Length (LH): 23 mm Cutting Item Count (CICT): 5 Connection Thread Nominal Size Machine Side (THSZMS): M10 Depth of Cut Maximum (APMX): 5.5 mm Measurement Type: Metric Overall Length (OAL): 43 mm Body Material: Steel Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting, Unit: M
