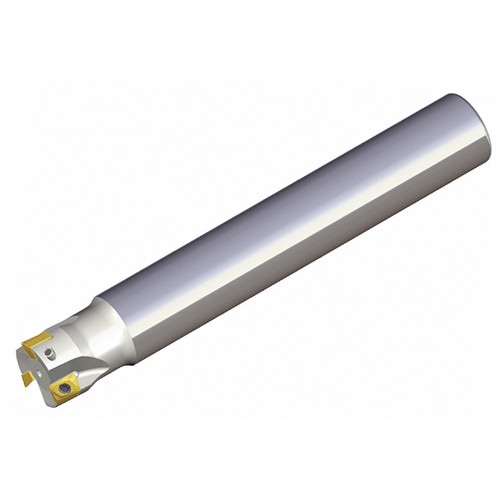

Taegutec TE90AX 832-W25-06-C

Product Code: 3104345

$758.87$689.88 Ex. GST

Product Code: 3104345 SKU 3104345 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

90° End mills with high positive two helical cutting edges inserts of AXMT 06 for small part machining

Weight	0.5200 kg
Dimensions
barcode

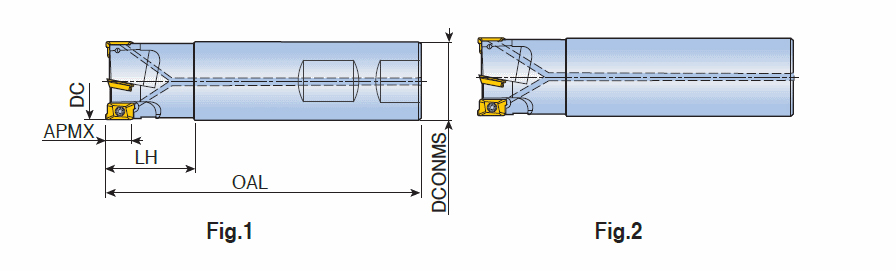

Additional Information	Cutting Diameter (DC/DCX): 32 mm Connection Diameter Machine Side (DCONMS): 25 mm Cutting Diameter (DC): 32 mm Master Insert Identification (MIID): AXMT 0602 PER-EM Cutting Item Count (CICT): 8 Head Length (LH): 32 mm Depth of Cut Maximum (APMX): 5.5 mm Measurement Type: Metric Overall Length (OAL): 130 mm Body Material: Steel Shank Type: Weldon Unit: M Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Shouldering, Slotting
