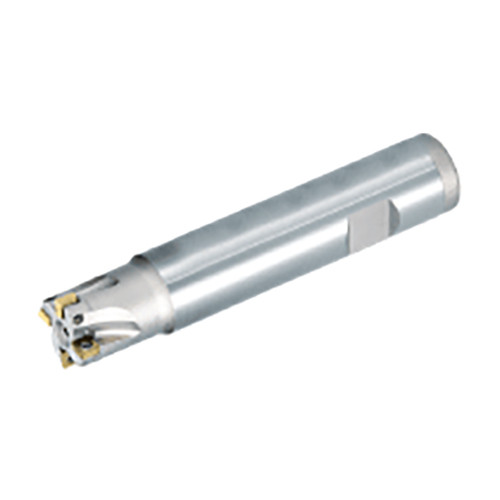

90° End mills for small part machining with SDMT 05 inserts of 4 cutting edges
Additional information
Weight
0.3100 kg
Dimensions
barcode
Additional Information

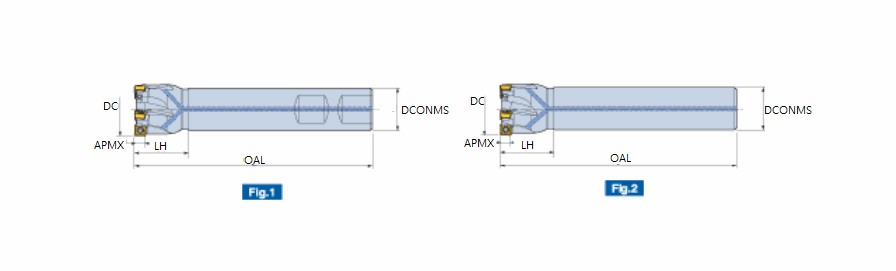

Cutting Diameter (DC/DCX): 25 mm
Connection Diameter Machine Side (DCONMS): 20 mm
Cutting Diameter (DC): 25 mm
Master Insert Identification (MIID): SDMT 050204-M
Cutting Item Count (CICT): 5
Head Length (LH): 25 mm
Depth of Cut Maximum (APMX): 4.5 mm
Measurement Type: Metric
Overall Length (OAL): 115 mm
Body Material: Steel
Shank Type: Weldon
Unit: M
Application:, Facing, Shouldering, Slotting
