Taegutec TE90XEV 225-25-16-L170

Product Code: 6128436

$777.68$706.98 Ex. GST

Product Code: 6128436 SKU 6128436 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

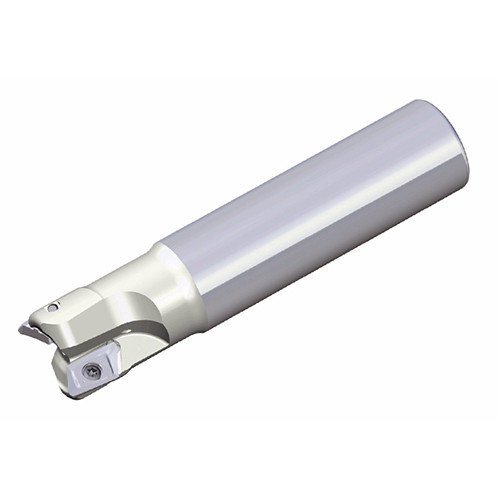

90° End mills with XEVT 16/22 inserts of very high positive rake angle & helical cutting edges for high speed aluminum machining

Weight	0.6350 kg
Dimensions
barcode

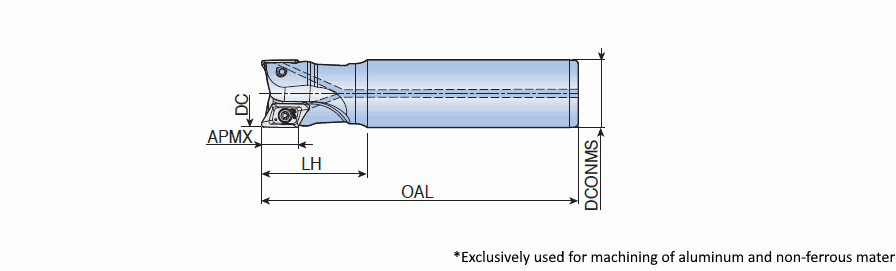

Additional Information	Cutting Diameter (DC/DCX): 25 mm Connection Diameter Machine Side (DCONMS): 25 mm Cutting Diameter (DC): 25 mm Master Insert Identification (MIID): XEVT 160508R-AL Cutting Item Count (CICT): 2 Head Length (LH): 70 mm Depth of Cut Maximum (APMX): 16 mm Measurement Type: Metric Overall Length (OAL): 170 mm Body Material: Steel Shank Type: Round Unit: M Application:, Facing, Helical Interpolation, Rampdown, Shouldering, Slotting, Step down machining
