Taegutec TE90XEV 225-M12-16

Product Code: 6128441

$706.20$642.00 Ex. GST

Product Code: 6128441 SKU 6128441 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

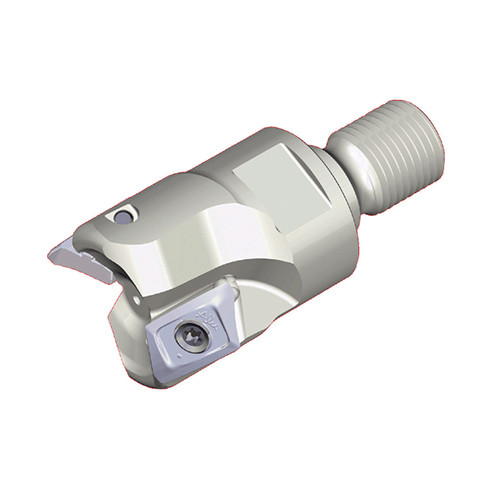

90° Modular end mills with T-FLEXTEC adaptation & high positive 2 helical cutting edges of V bottomed XEVT inserts for high speed aluminum machining

Weight	0.2000 kg
Dimensions
barcode

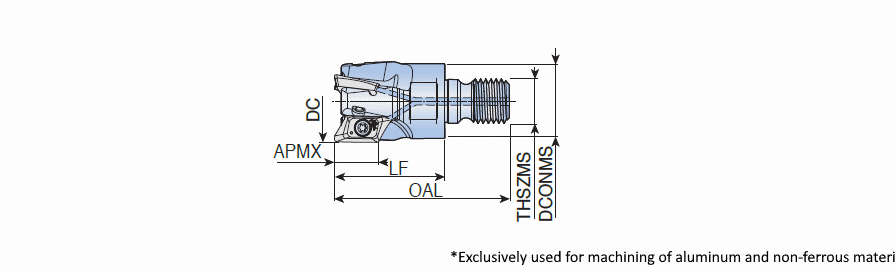

Additional Information	Cutting Diameter (DC/DCX): 25 mm Master Insert Identification (MIID): XEVT 160508R-AL Cutting Diameter (DC): 25 mm Head Length (LH): 43 mm Cutting Item Count (CICT): 2 Connection Thread Nominal Size Machine Side (THSZMS): M12 Depth of Cut Maximum (APMX): 16 mm Measurement Type: Metric Overall Length (OAL): 65 mm Body Material: Steel Application:, Facing, Helical Interpolation, Rampdown, Shouldering, Slotting, Step down machining, Unit: M
