Taegutec TE90XEV 232-125-HSK63A-16

Product Code: 3112431

$1,761.35$1,601.23 Ex. GST

Product Code: 3112431 SKU 3112431 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

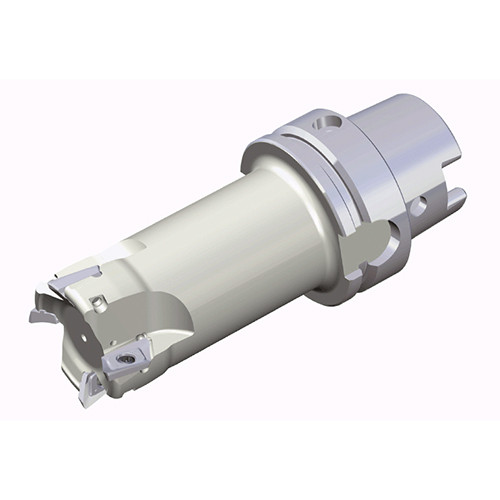

Taegutec TE90XEV 232-125-HSK63A-16

Taegutec TE90XEV 232-125-HSK63A-16 - Image 2

Taegutec TE90XEV 232-125-HSK63A-16 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

90° End mills with HSK 63A shank & very high positive rake angle & two helical cutting edges of XEVT 16 for high speed machining of aluminum

Additional information

Weight	1.1450 kg
Dimensions
barcode

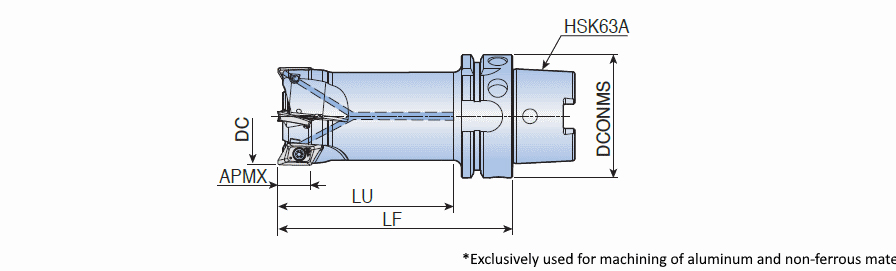

Additional Information	Cutting Diameter (DC/DCX): 63 mm Master Insert Identification (MIID): XEVT 160508R-AL Cutting Diameter (DC): 63 mm Head Length (LH): 95 mm Cutting Item Count (CICT): 2 Measurement Type: Metric Depth of Cut Maximum (APMX): 16 mm Body Material: Steel Overall Length (OAL): 125 mm Unit: M Application:, Facing, Helical Interpolation, Rampdown, Shouldering, Slotting, Step down machining

Brand

Taegutec
