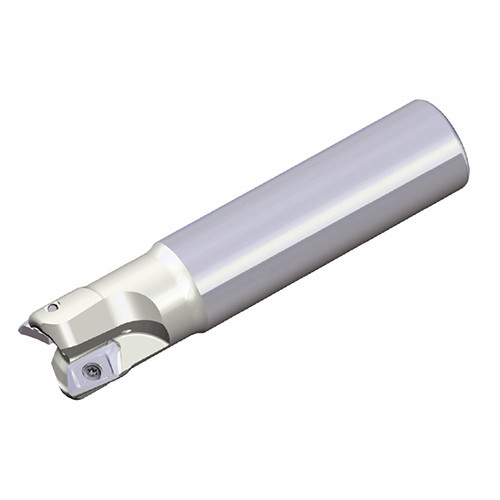

Taegutec TE90XEV 232-32-16

Product Code: 6114512

$872.37$793.06 Ex. GST

Product Code: 6114512 SKU 6114512 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

90° End mills with XEVT 16/22 inserts of very high positive rake angle & helical cutting edges for high speed aluminum machining

Weight	0.8850 kg
Dimensions
barcode

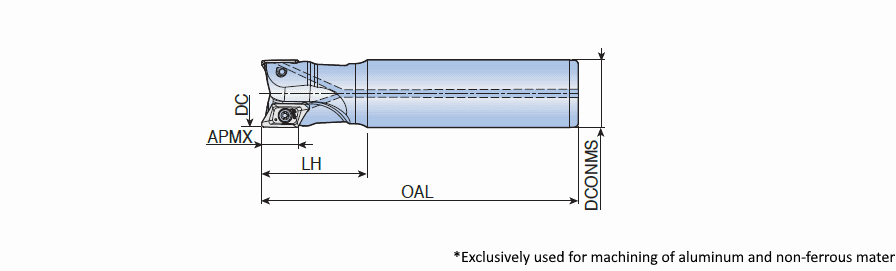

Additional Information	Cutting Diameter (DC/DCX): 32 mm Connection Diameter Machine Side (DCONMS): 32 mm Cutting Diameter (DC): 32 mm Master Insert Identification (MIID): XEVT 160508R-AL Cutting Item Count (CICT): 2 Head Length (LH): 50 mm Depth of Cut Maximum (APMX): 16 mm Measurement Type: Metric Overall Length (OAL): 150 mm Body Material: Steel Shank Type: Round Unit: M Application:, Facing, Helical Interpolation, Rampdown, Shouldering, Slotting, Step down machining
