Taegutec TE90XEV 232-32-22

Product Code: 6119401

$872.37$793.06 Ex. GST

Product Code: 6119401 SKU 6119401 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

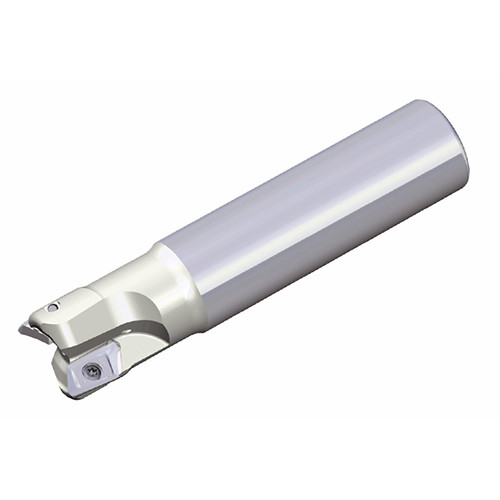

90° End mills with XEVT 16/22 inserts of very high positive rake angle & helical cutting edges for high speed aluminum machining

Weight	0.9000 kg
Dimensions
barcode

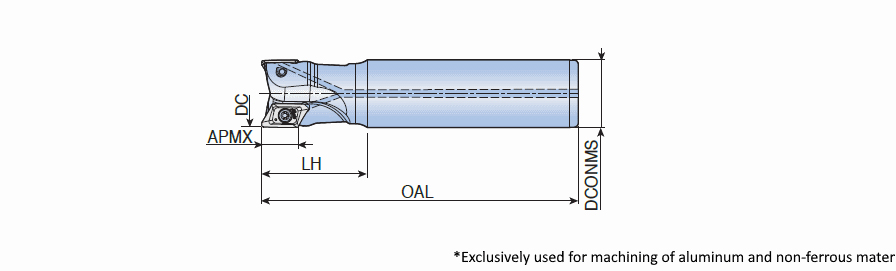

Additional Information	Cutting Diameter (DC/DCX): 32 mm Connection Diameter Machine Side (DCONMS): 32 mm Cutting Diameter (DC): 32 mm Master Insert Identification (MIID): XEVT 220608R-AL Cutting Item Count (CICT): 2 Head Length (LH): 100 mm Depth of Cut Maximum (APMX): 21 mm Measurement Type: Metric Overall Length (OAL): 160 mm Body Material: Steel Shank Type: Round Unit: M Application:, Facing, Helical Interpolation, Rampdown, Shouldering, Slotting, Step down machining
