Taegutec TE90XEV 332-32-16-L200

Product Code: 6128439

$950.07$863.70 Ex. GST

Product Code: 6128439 SKU 6128439 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

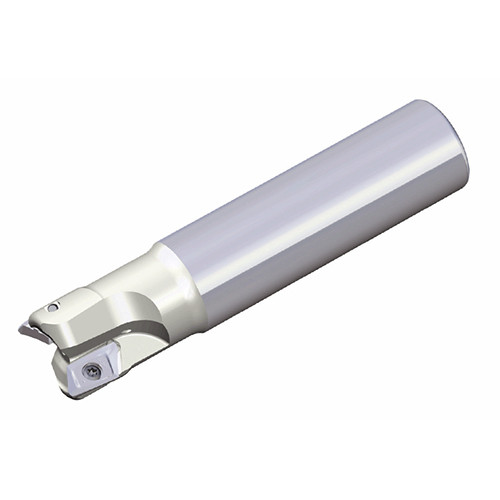

Taegutec TE90XEV 332-32-16-L200

Taegutec TE90XEV 332-32-16-L200 - Image 2

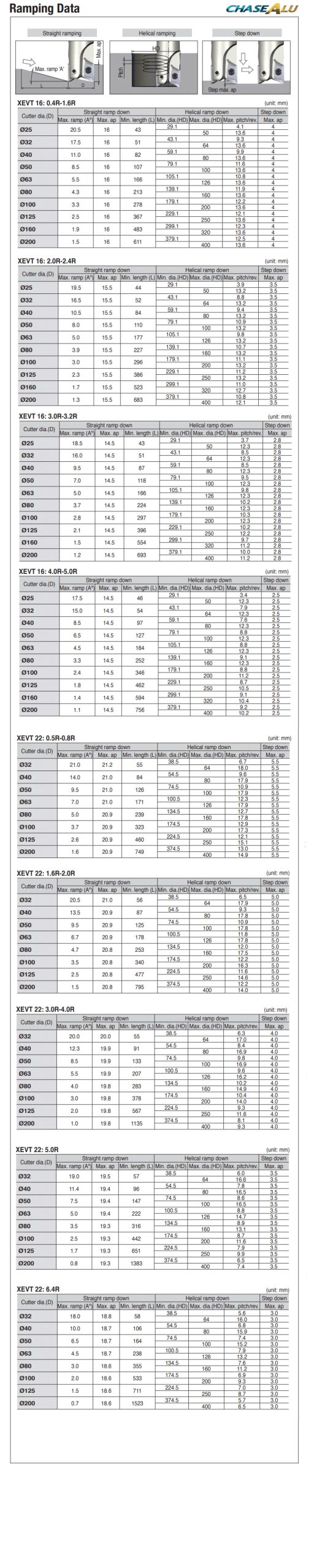

Taegutec TE90XEV 332-32-16-L200 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

90° End mills with XEVT 16/22 inserts of very high positive rake angle & helical cutting edges for high speed aluminum machining

Additional information

Weight	1.1650 kg
Dimensions
barcode

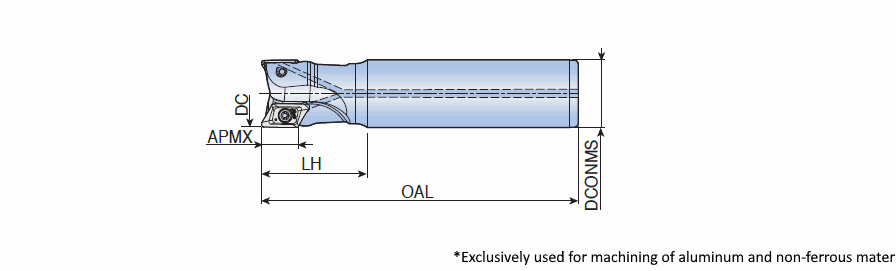

Additional Information	Cutting Diameter (DC/DCX): 32 mm Connection Diameter Machine Side (DCONMS): 32 mm Cutting Diameter (DC): 32 mm Master Insert Identification (MIID): XEVT 160508R-AL Cutting Item Count (CICT): 3 Head Length (LH): 80 mm Depth of Cut Maximum (APMX): 16 mm Measurement Type: Metric Overall Length (OAL): 200 mm Body Material: Steel Shank Type: Round Unit: M Application:, Facing, Helical Interpolation, Rampdown, Shouldering, Slotting, Step down machining

Brand

Taegutec
