Taegutec TE90XEV 332-90-HSK63A-16

Product Code: 3112432

$1,696.13$1,541.94 Ex. GST

Product Code: 3112432 SKU 3112432 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

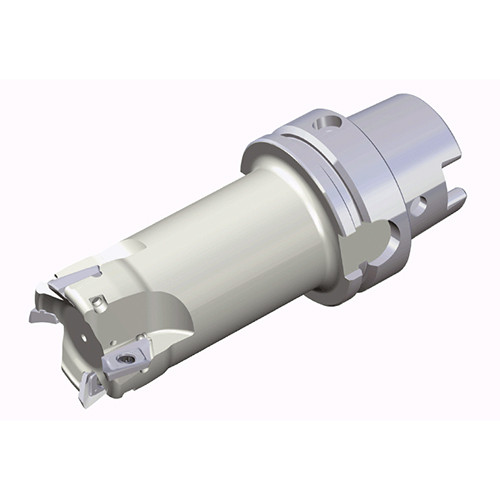

90° End mills with HSK 63A shank & very high positive rake angle & two helical cutting edges of XEVT 16 for high speed machining of aluminum

Weight	0.9650 kg
Dimensions
barcode

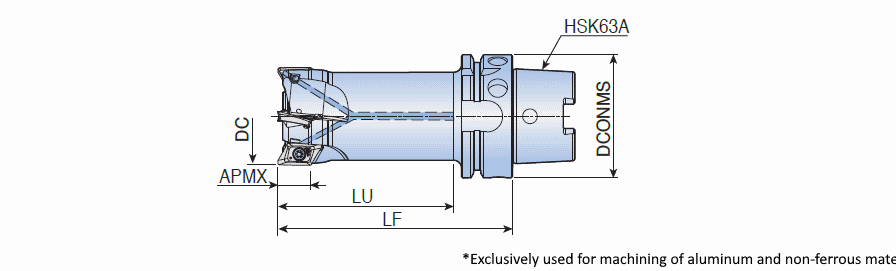

Additional Information	Cutting Diameter (DC/DCX): 63 mm Master Insert Identification (MIID): XEVT 160508R-AL Cutting Diameter (DC): 63 mm Head Length (LH): 60 mm Cutting Item Count (CICT): 3 Measurement Type: Metric Depth of Cut Maximum (APMX): 16 mm Body Material: Steel Overall Length (OAL): 90 mm Unit: M Application:, Facing, Helical Interpolation, Rampdown, Shouldering, Slotting, Step down machining
