Taegutec TE90XEV 340-40-22

Product Code: 6119402

$979.84$890.76 Ex. GST

Product Code: 6119402 SKU 6119402 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

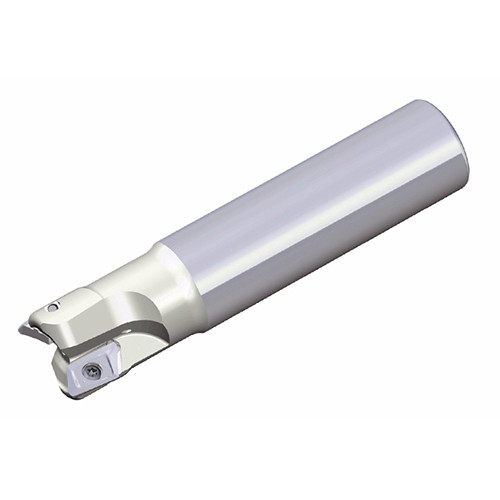

90° End mills with XEVT 16/22 inserts of very high positive rake angle & helical cutting edges for high speed aluminum machining

Weight	1.3700 kg
Dimensions
barcode
Additional Information	Cutting Diameter (DC/DCX): 40 mm Connection Diameter Machine Side (DCONMS): 40 mm Cutting Diameter (DC): 40 mm Master Insert Identification (MIID): XEVT 220608R-AL Cutting Item Count (CICT): 3 Head Length (LH): 80 mm Depth of Cut Maximum (APMX): 21 mm Measurement Type: Metric Overall Length (OAL): 160 mm Body Material: Steel Shank Type: Round Unit: M Application:, Facing, Helical Interpolation, Rampdown, Shouldering, Slotting, Step down machining
