Taegutec TE90XEV 340-M16-16

Product Code: 6128444

$979.84$890.76 Ex. GST

Product Code: 6128444 SKU 6128444 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

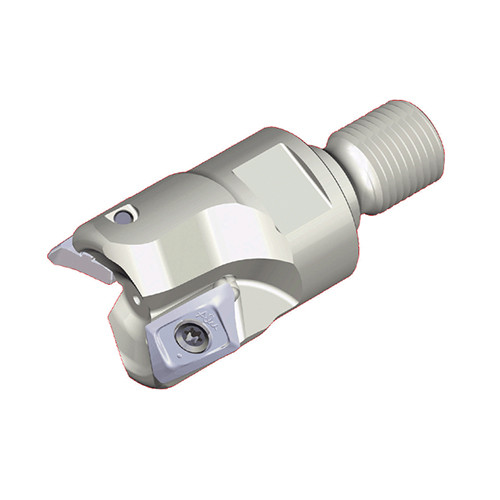

Taegutec TE90XEV 340-M16-16

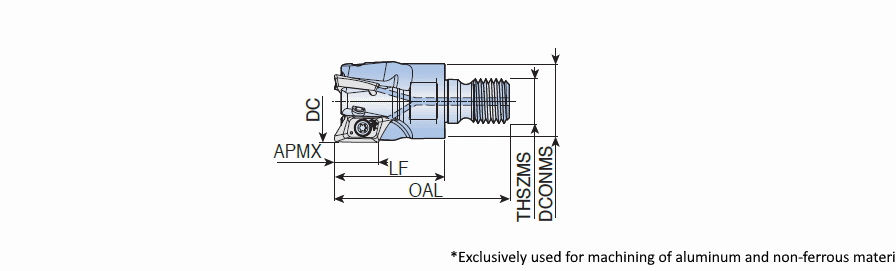

Taegutec TE90XEV 340-M16-16 - Image 2

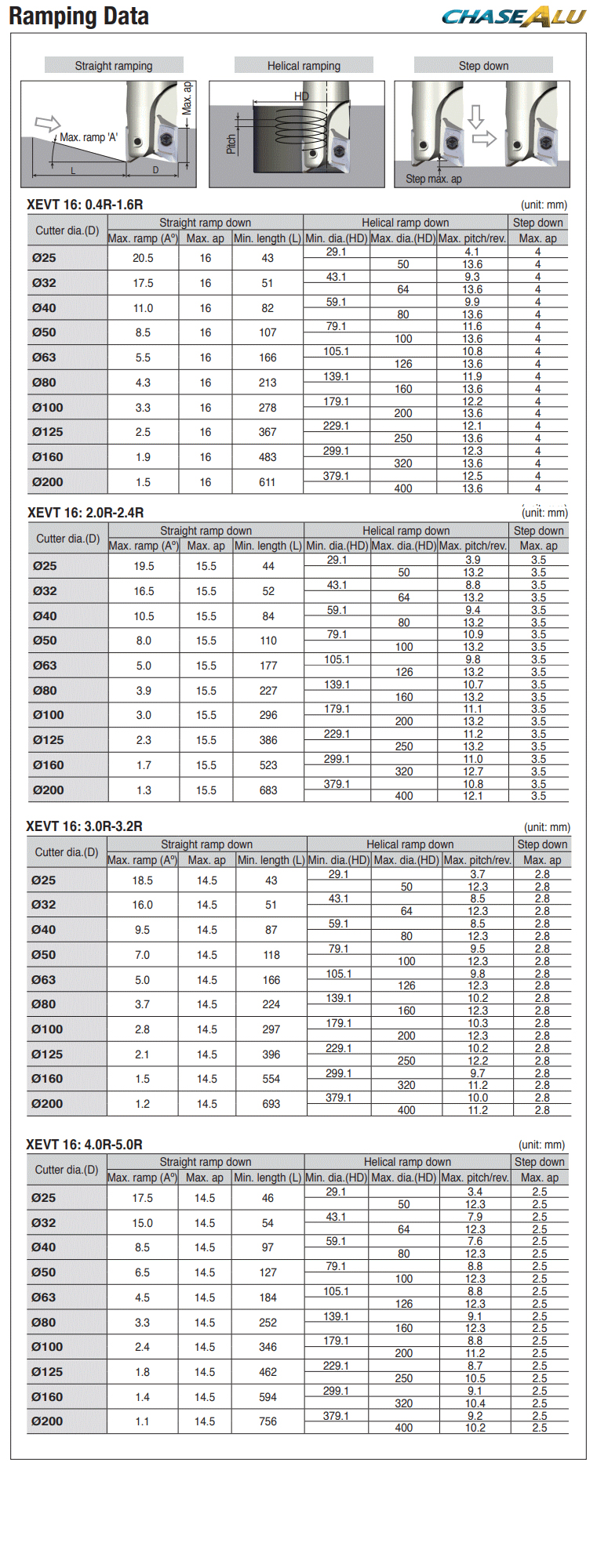

Taegutec TE90XEV 340-M16-16 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

90° Modular end mills with T-FLEXTEC adaptation & high positive 2 helical cutting edges of V bottomed XEVT inserts for high speed aluminum machining

Additional information

Weight	0.3300 kg
Dimensions
barcode
Additional Information	Cutting Diameter (DC/DCX): 40 mm Master Insert Identification (MIID): XEVT 160508R-AL Cutting Diameter (DC): 40 mm Head Length (LH): 43 mm Cutting Item Count (CICT): 3 Connection Thread Nominal Size Machine Side (THSZMS): M16 Depth of Cut Maximum (APMX): 16 mm Measurement Type: Metric Overall Length (OAL): 68 mm Body Material: Steel Application:, Facing, Helical Interpolation, Rampdown, Shouldering, Slotting, Step down machining, Unit: M

Brand

Taegutec
