Taegutec TEBL 210-S06-04

Product Code: 6320677

$447.33$406.66 Ex. GST

Product Code: 6320677 SKU 6320677 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

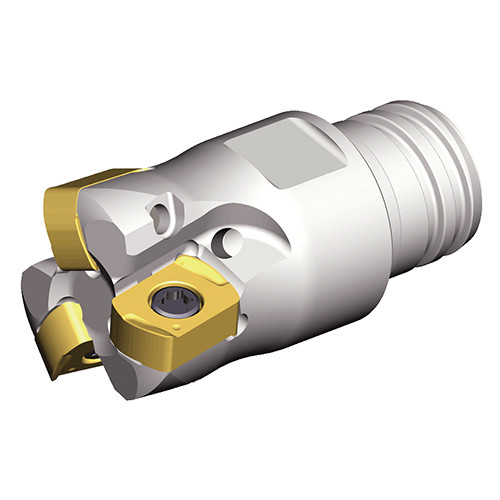

Taegutec TEBL 210-S06-04

Taegutec TEBL 210-S06-04 - Image 2

Taegutec TEBL 210-S06-04 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

High feed end mills with BLMP 04 inserts of 4 cutting edges and MAXIRUSH modular adaptations in maximum depth of cut ap 0.5 mm

Additional information

Weight	0.0800 kg
Dimensions
barcode

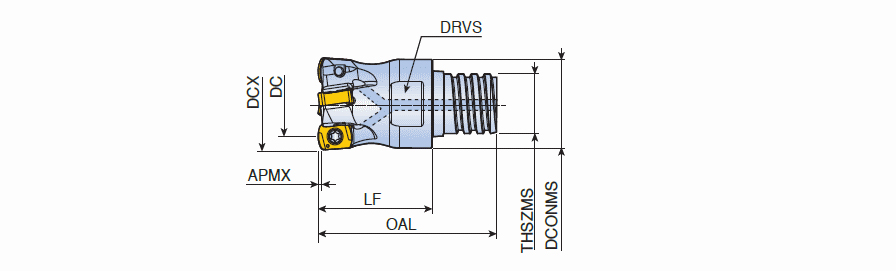

Additional Information	Cutting Diameter (DC/DCX): 10 mm Master Insert Identification (MIID): BLMP 0402R-M Cutting Diameter (DC): 5.7 mm Functional Length (LF): 15 mm Cutting Item Count (CICT): 2 Measurement Type: Metric Depth of Cut Maximum (APMX): 0.5 mm Body Material: Steel Overall Length (OAL): 21.3 mm Cutting Diameter Maximum (DCX): 10 mm Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Unit: M Connection Diameter Machine Side (DCONMS): 9.6 mm

Brand

Taegutec
