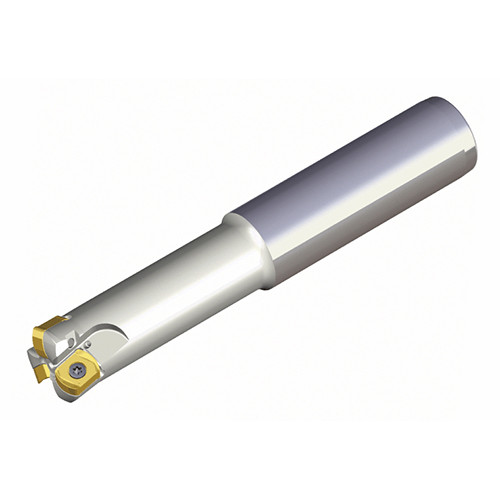

Taegutec TEBL 225-25-09-L150

Product Code: 3112322

$570.61$518.74 Ex. GST

Product Code: 3112322 SKU 3112322 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

High feed end mills with BLMP 09 inserts of 4 cutting edges in maximum depth of cut 1.5 mm

Weight	0.5400 kg
Dimensions
barcode

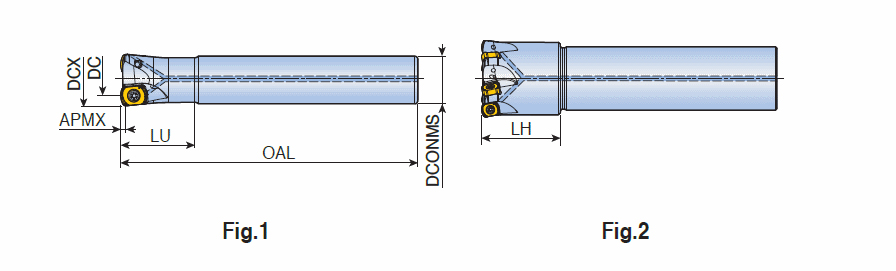

Additional Information	Cutting Diameter (DC/DCX): 25 mm Connection Diameter Machine Side (DCONMS): 25 mm Cutting Diameter (DC): 25 mm Master Insert Identification (MIID): BLMP 0904R-M Cutting Item Count (CICT): 2 Head Length (LH): – Depth of Cut Maximum (APMX): 1.5 mm Measurement Type: Metric Overall Length (OAL): 150 mm Body Material: Steel Shank Type: Round Unit: M Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown
