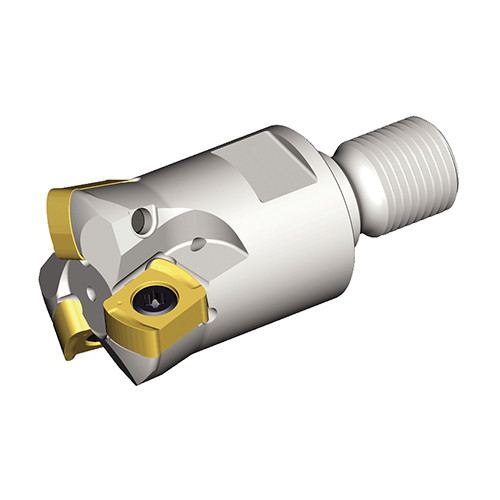

Taegutec TEBL 233-M16-11

Product Code: 6307354

$572.13$520.12 Ex. GST

Product Code: 6307354 SKU 6307354 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

High feed end mills with BLMP 11 inserts of 4 cutting edges and T-FLEXTEC modular adaptations in maximum depth of cut ap 2.0 mm

Weight	0.2850 kg
Dimensions
barcode

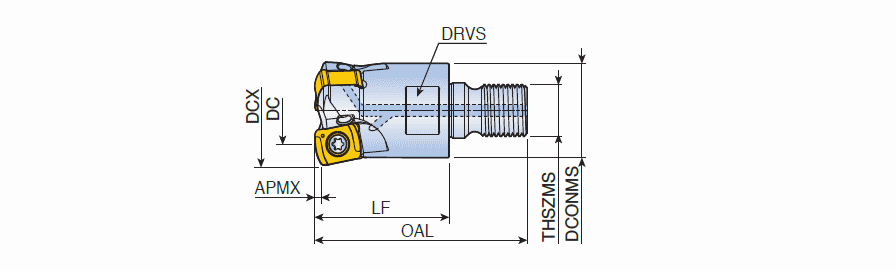

Additional Information	Cutting Diameter (DC/DCX): 33 mm Master Insert Identification (MIID): BLMP 1105R-M Cutting Diameter (DC): 17.6 mm Functional Length (LF): 43 mm Cutting Item Count (CICT): 2 Measurement Type: Metric Depth of Cut Maximum (APMX): 2 mm Body Material: Steel Overall Length (OAL): 68 mm Cutting Diameter Maximum (DCX): 33 mm Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Unit: M Connection Diameter Machine Side (DCONMS): 29 mm
