Taegutec TEBL 312-S08-04

Product Code: 6320678

$480.48$436.80 Ex. GST

Product Code: 6320678 SKU 6320678 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

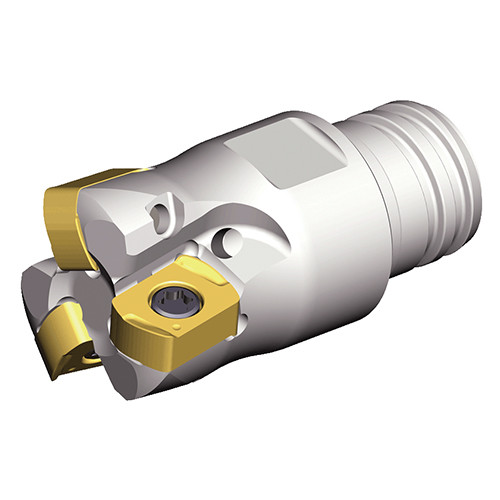

High feed end mills with BLMP 04 inserts of 4 cutting edges and MAXIRUSH modular adaptations in maximum depth of cut ap 0.5 mm

Weight	0.0850 kg
Dimensions
barcode

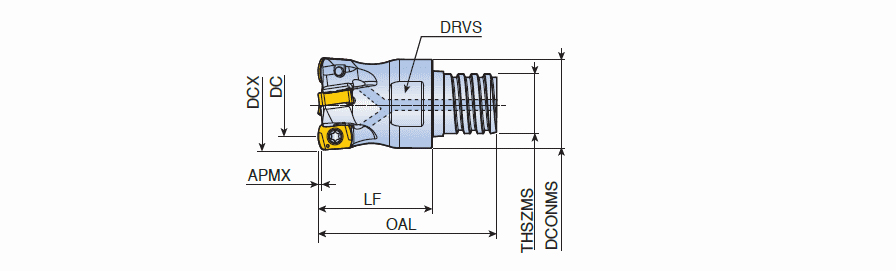

Additional Information	Cutting Diameter (DC/DCX): 12 mm Master Insert Identification (MIID): BLMP 0402R-M Cutting Diameter (DC): 7.6 mm Functional Length (LF): 16 mm Cutting Item Count (CICT): 3 Measurement Type: Metric Depth of Cut Maximum (APMX): 0.5 mm Body Material: Steel Overall Length (OAL): 23.5 mm Cutting Diameter Maximum (DCX): 12 mm Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Unit: M Connection Diameter Machine Side (DCONMS): 11.5 mm
