High feed end mills with BLMP 06 inserts of 4 cutting edges in max. ap 1.0 mm
Additional information
Weight
0.9800 kg
Dimensions
barcode
Additional Information

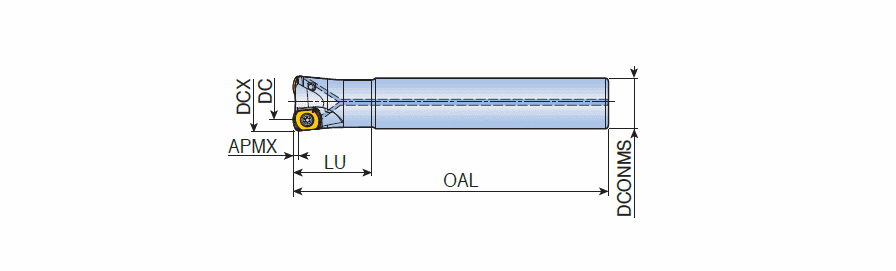

Cutting Diameter (DC/DCX): 26 mm
Connection Diameter Machine Side (DCONMS): 25 mm
Cutting Diameter (DC): 26 mm
Master Insert Identification (MIID): BLMP 0603R-M
Cutting Item Count (CICT): 3
Head Length (LH): 30 mm
Depth of Cut Maximum (APMX): 1 mm
Measurement Type: Metric
Overall Length (OAL): 250 mm
Body Material: Steel
Shank Type: Round
Unit: M
Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown
