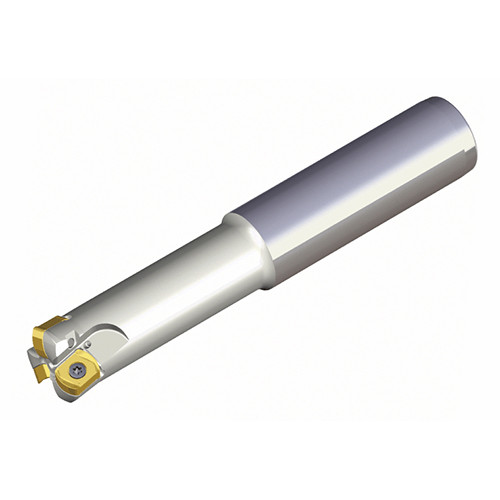

Taegutec TEBL 433-32-09-L250

Product Code: 3112885

$691.06$628.24 Ex. GST

Product Code: 3112885 SKU 3112885 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Taegutec TEBL 433-32-09-L250

Taegutec TEBL 433-32-09-L250 - Image 2

Taegutec TEBL 433-32-09-L250 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

High feed end mills with BLMP 09 inserts of 4 cutting edges in maximum depth of cut 1.5 mm

Additional information

Weight	1.5500 kg
Dimensions
barcode

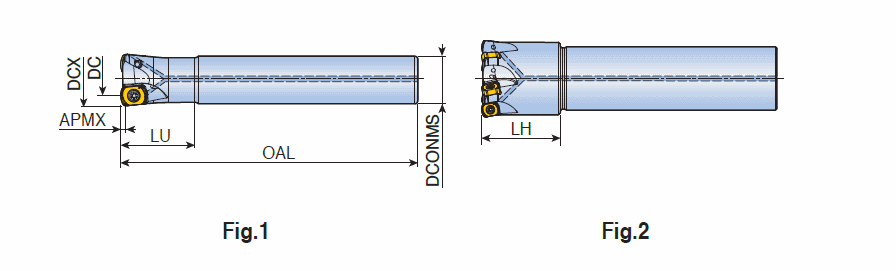

Additional Information	Cutting Diameter (DC/DCX): 33 mm Connection Diameter Machine Side (DCONMS): 32 mm Cutting Diameter (DC): 33 mm Master Insert Identification (MIID): BLMP 0904R-M Cutting Item Count (CICT): 4 Head Length (LH): – Depth of Cut Maximum (APMX): 1.5 mm Measurement Type: Metric Overall Length (OAL): 250 mm Body Material: Steel Shank Type: Round Unit: M Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown

Brand

Taegutec
