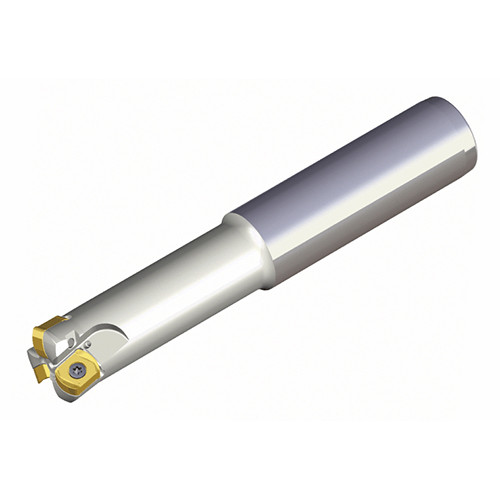

High feed end mills with BLMP 09 inserts of 4 cutting edges in maximum depth of cut 1.5 mm
Additional information
Weight
1.2050 kg
Dimensions
barcode
Additional Information

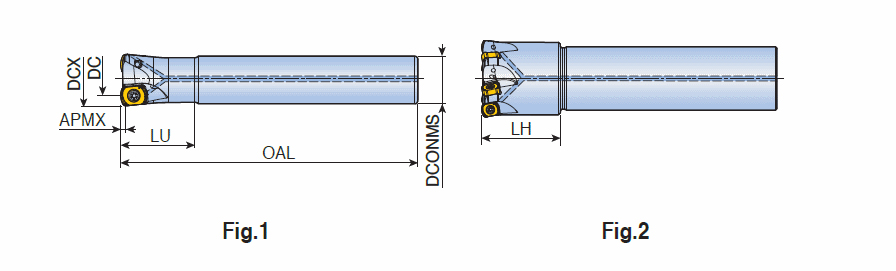

Cutting Diameter (DC/DCX): 40 mm
Connection Diameter Machine Side (DCONMS): 32 mm
Cutting Diameter (DC): 40 mm
Master Insert Identification (MIID): BLMP 0904R-M
Cutting Item Count (CICT): 4
Head Length (LH): 40 mm
Depth of Cut Maximum (APMX): 1.5 mm
Measurement Type: Metric
Overall Length (OAL): 180 mm
Body Material: Steel
Shank Type: Round
Unit: M
Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown
