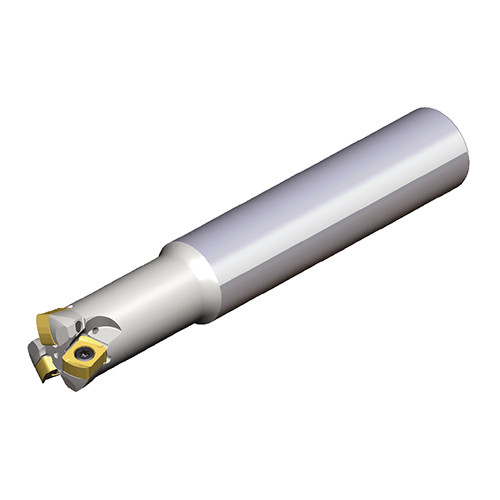

High feed end mills with BLMP 04 inserts of 4 cutting edges in maximum depth of cut ap 0.5 mm
Additional information
Weight
0.5250 kg
Dimensions
barcode
Additional Information

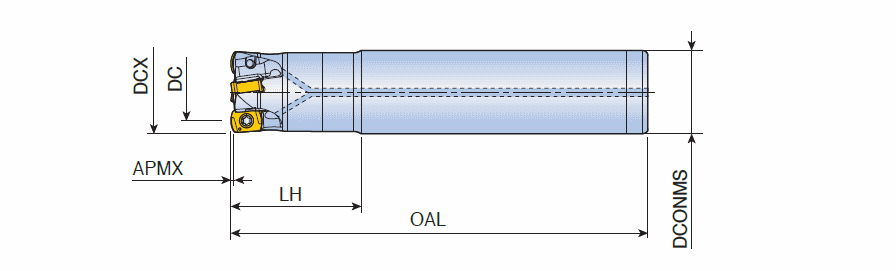

Cutting Diameter (DC/DCX): 20 mm
Connection Diameter Machine Side (DCONMS): 20 mm
Cutting Diameter (DC): 15.5 mm
Master Insert Identification (MIID): BLMP 0402R-M
Cutting Item Count (CICT): 5
Head Length (LH): 25 mm
Depth of Cut Maximum (APMX): 0.5 mm
Measurement Type: Metric
Overall Length (OAL): 200 mm
Body Material: Steel
Shank Type: Round
Cutting Diameter Maximum (DCX): 20 mm

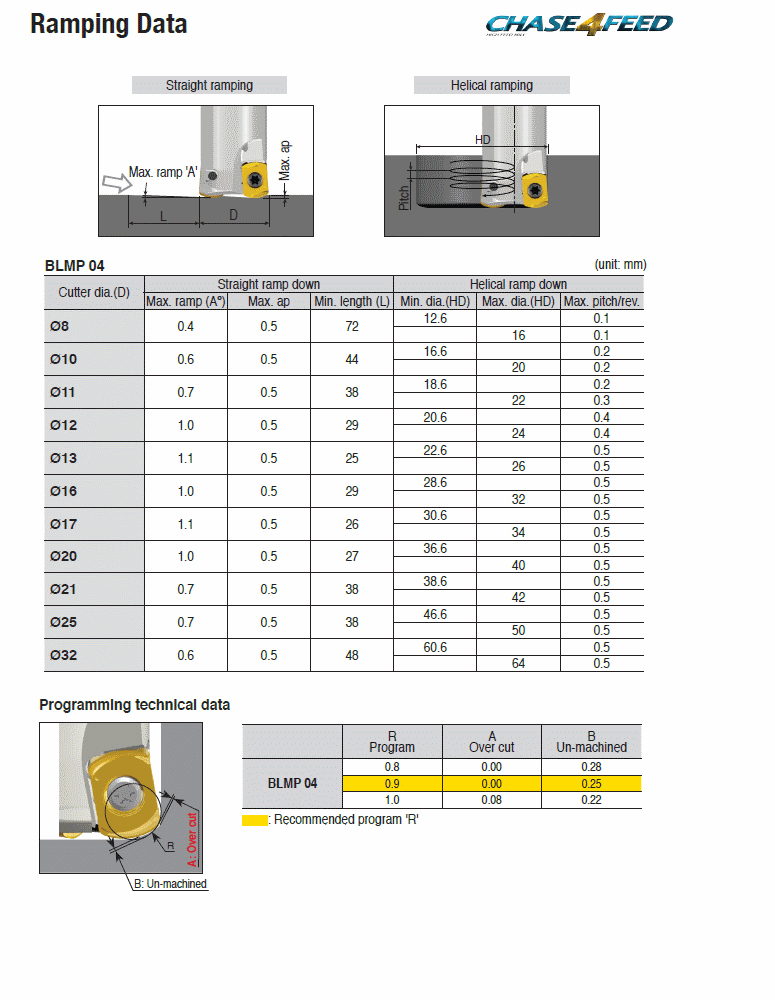

Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Unit: M
