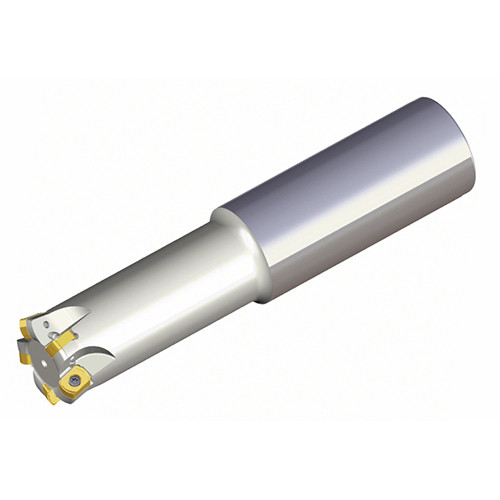

High feed end mills with BLMP 06 inserts of 4 cutting edges in max. ap 1.0 mm
Additional information
Weight
1.6650 kg
Dimensions
barcode
Additional Information

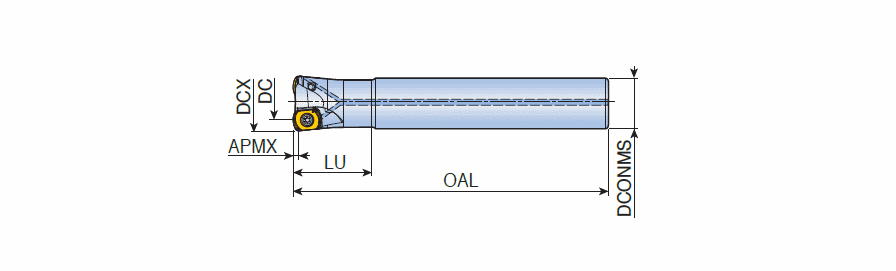

Cutting Diameter (DC/DCX): 40 mm
Connection Diameter Machine Side (DCONMS): 32 mm
Cutting Diameter (DC): 40 mm
Master Insert Identification (MIID): BLMP 0603R-M
Cutting Item Count (CICT): 6
Head Length (LH): 40 mm
Depth of Cut Maximum (APMX): 1.9 mm
Measurement Type: Metric
Overall Length (OAL): 250 mm
Body Material: Steel
Shank Type: Round
Unit: M
Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown
