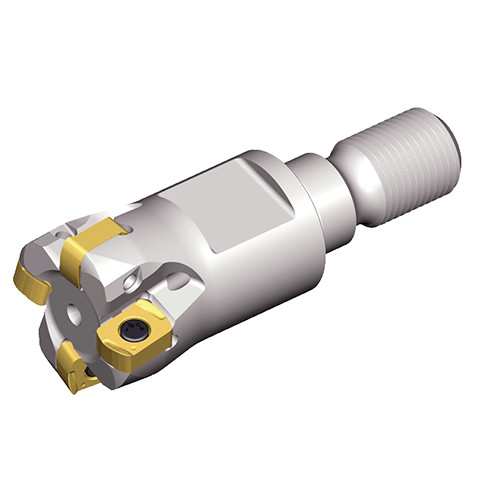

Taegutec TEBL 725-M12-04

Product Code: 6197303

$610.01$554.55 Ex. GST

Product Code: 6197303 SKU 6197303 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

High feed end mills with BLMP 04 inserts of 4 cutting edges and T-FLEXTEC modular adaptations in maximum depth of cut ap 0.5 mm

Weight	0.1300 kg
Dimensions
barcode

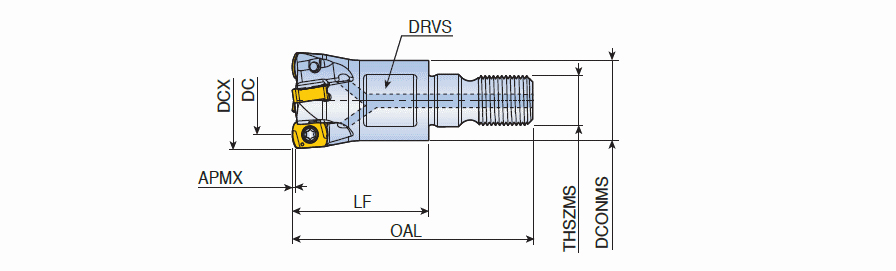

Additional Information	Cutting Diameter (DC/DCX): 25 mm Master Insert Identification (MIID): BLMP 0402R-M Cutting Diameter (DC): 20.6 mm Functional Length (LF): 27 mm Cutting Item Count (CICT): 7 Measurement Type: Metric Depth of Cut Maximum (APMX): 0.5 mm Body Material: Steel Overall Length (OAL): 49 mm Cutting Diameter Maximum (DCX): 25 mm Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Unit: M Connection Diameter Machine Side (DCONMS): 21 mm
