Home » Shop » CUTTING TOOLS » Carbide » MILLING CUTTER » Taegutec TEF D40-56-W32-AN16
$1,575.51$1,432.28 Ex. GST
Extended flute end mills with 4 helical cutting edges of double-sided AN 16 inserts

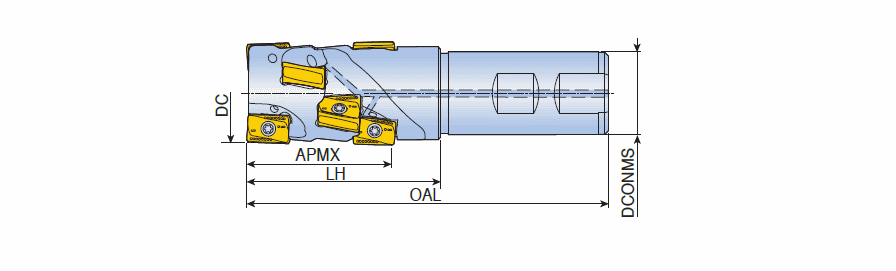

Cutting Diameter (DC/DCX): 40 mm Connection Diameter Machine Side (DCONMS): 32 mm Cutting Diameter (DC): 40 mm Master Insert Identification (MIID): ANHX 160708R-M Cutting Item Count (CICT): 8 Head Length (LH): 75 mm Depth of Cut Maximum (APMX): 56 mm Flute Count (NOF): 2 Overall Length (OAL): 140 mm Measurement Type: Metric Shank Type: Weldon Body Material: Steel Application:, Shouldering, Slotting, Unit: M
