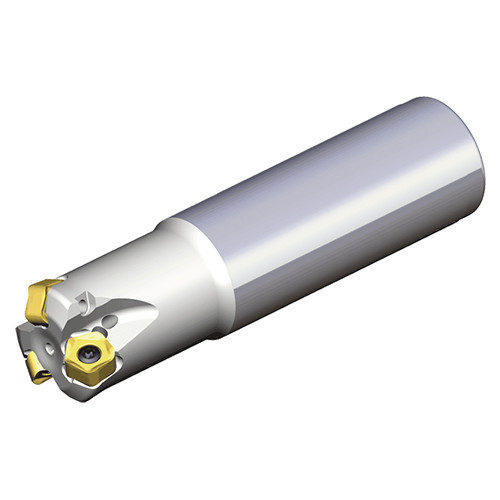

High Feed end mills with PTKU 05 inserts of economical 10 cutting edges in maximum depth of cut ap 1.5 mm
Additional information
Weight
0.3750 kg
Dimensions
barcode
Additional Information

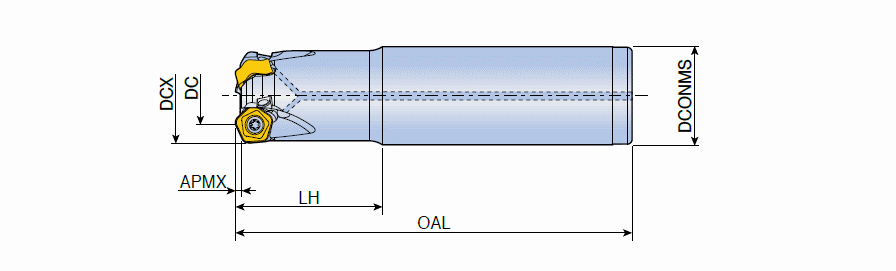

Cutting Diameter (DC/DCX): 20 mm
Connection Diameter Machine Side (DCONMS): 20 mm
Cutting Diameter (DC): 11.9 mm
Master Insert Identification (MIID): PTKU 0503R-M
Cutting Item Count (CICT): 3
Head Length (LH): 50 mm
Depth of Cut Maximum (APMX): 1.5 mm
Measurement Type: Metric
Overall Length (OAL): 150 mm
Body Material: Steel
Shank Type: Round
Cutting Diameter Maximum (DCX): 20 mm
Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Unit: M
