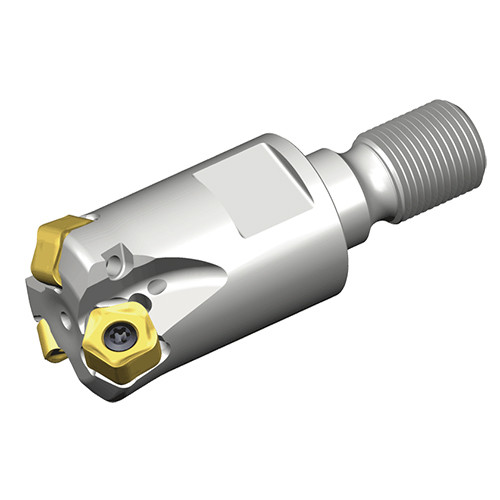

High feed end mills with PTKU 05 inserts of 10 cutting edges & T-FLEXTEC modular adaptation in max. ap 1.5 mm
Additional information
Weight
0.2700 kg
Dimensions
barcode
Additional Information

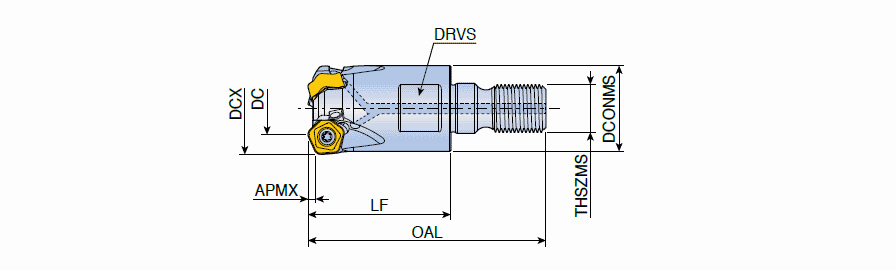

Cutting Diameter (DC/DCX): 32 mm
Master Insert Identification (MIID): PTKU 0503R-M
Cutting Diameter (DC): 23.8 mm
Functional Length (LF): 43 mm
Cutting Item Count (CICT): 5
Measurement Type: Metric
Depth of Cut Maximum (APMX): 1.5 mm
Body Material: Steel
Overall Length (OAL): 68 mm
Cutting Diameter Maximum (DCX): 32 mm
Application:, Facing, Helical Interpolation, High Feed Milling, Profiling, Rampdown, Unit: M
Connection Diameter Machine Side (DCONMS): 29 mm
