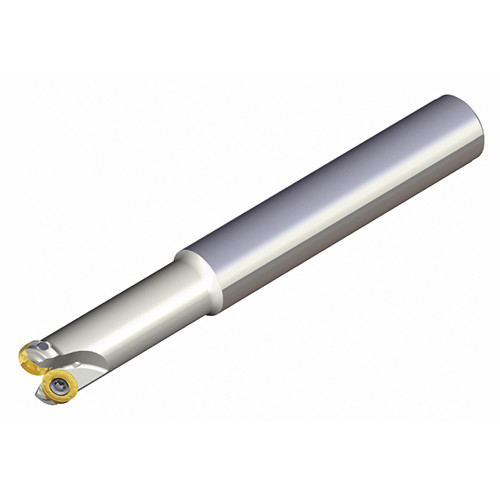

End mills with positive round inserts for profiling and milling of round corners
Additional information
Weight
0.0700 kg
Dimensions
barcode
Additional Information

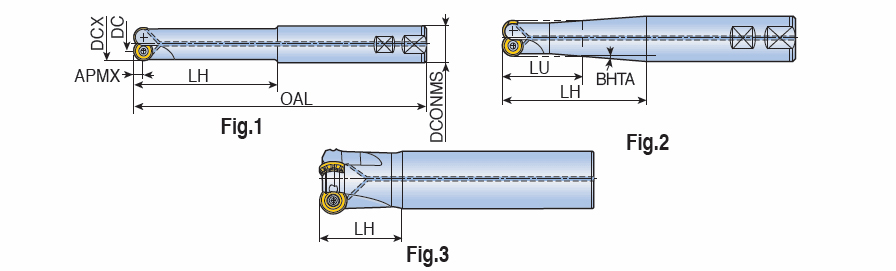

Cutting Diameter (DC/DCX): 8 mm
Head Length (LH): 20 mm
Cutting Diameter (DC): 3 mm
Usable Length (LU): –
Depth of Cut Maximum (APMX): 2.5 mm
Body Half Taper Angle (BHTA): –
Overall Length (OAL): 80 mm
Measurement Type: Metric
Shank Type: Weldon
Body Material: Steel
Application:, Facing, Helical Interpolation, Profiling, Rampdown, Cutting Diameter Maximum (DCX): 8 mm
Connection Diameter Machine Side (DCONMS): 10 mm
Unit: M
Master Insert Identification (MIID): RDMX 0501-M
