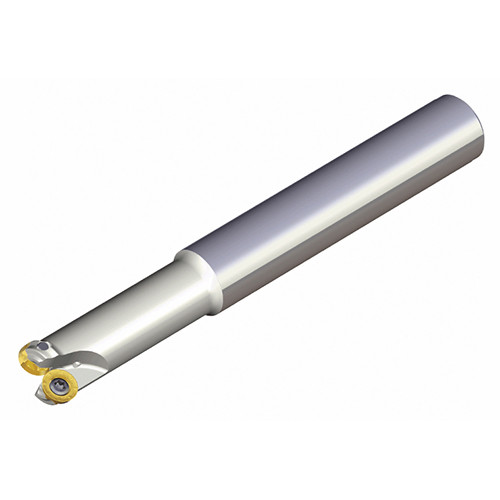

End mills with positive round inserts for profiling and milling of round corners
Additional information
Weight
0.4600 kg
Dimensions
barcode
Additional Information

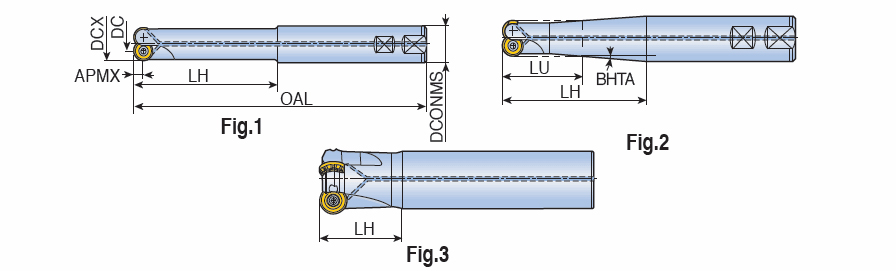

Cutting Diameter (DC/DCX): 15 mm
Head Length (LH): 74.9 mm
Cutting Diameter (DC): 8 mm
Usable Length (LU): 34 mm
Depth of Cut Maximum (APMX): 3.5 mm
Body Half Taper Angle (BHTA): 3.5 Degrees
Overall Length (OAL): 200 mm
Measurement Type: Metric
Shank Type: Round
Body Material: Steel
Application:, Facing, Helical Interpolation, Profiling, Rampdown, Cutting Diameter Maximum (DCX): 15 mm
Connection Diameter Machine Side (DCONMS): 20 mm
Unit: M
Master Insert Identification (MIID): RDMX 0702-M
