Taegutec TERD 215-M08-07

Product Code: 3102005

$286.08$260.07 Ex. GST

Product Code: 3102005 SKU 3102005 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

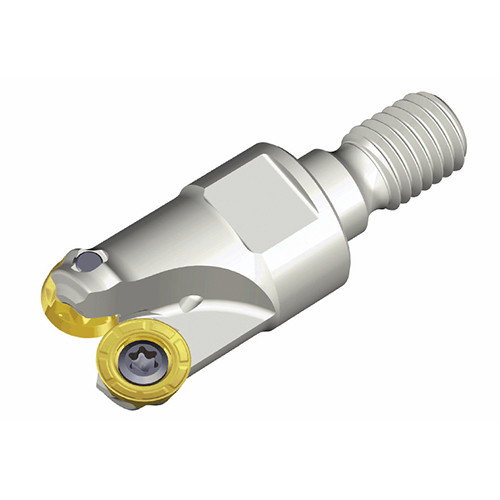

Modular end mills with T-FLEXTEC adaptation & positive round inserts for profiling

Weight	0.1050 kg
Dimensions
barcode

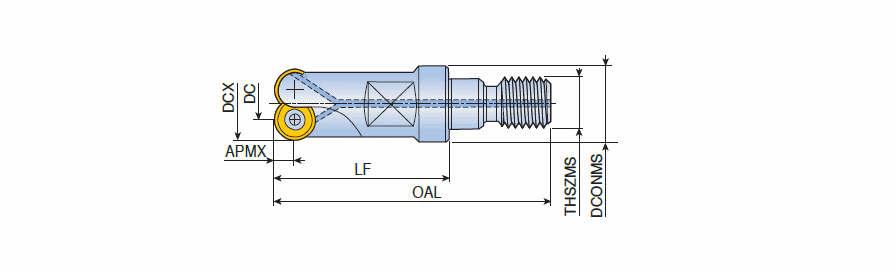

Additional Information	Cutting Diameter (DC/DCX): 15 mm Master Insert Identification (MIID): RDMX 0702-M Cutting Diameter (DC): 15 mm Head Length (LH): 23 mm Cutting Item Count (CICT): 2 Connection Thread Nominal Size Machine Side (THSZMS): M08 Depth of Cut Maximum (APMX): 3.5 mm Measurement Type: Metric Overall Length (OAL): 40.5 mm Body Material: Steel Application:, Facing, Helical Interpolation, Profiling, Rampdown, Unit: M
