Taegutec TERNS 225-25-10-L160

Product Code: 3113004

$386.90$351.73 Ex. GST

Product Code: 3113004 SKU 3113004 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

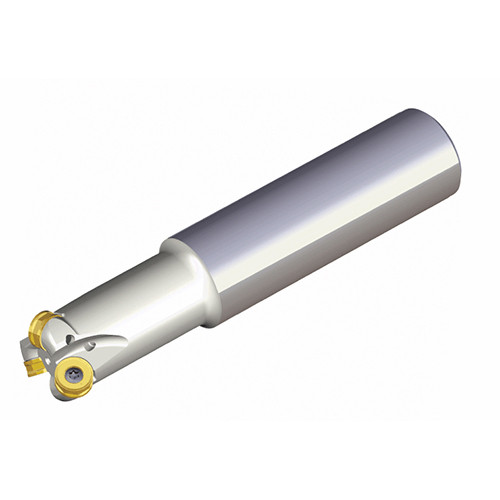

Taegutec TERNS 225-25-10-L160

Taegutec TERNS 225-25-10-L160 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

End mills with double-sided round inserts of RNMU for general and Die & Mold application

Additional information

Weight	0.6000 kg
Dimensions
barcode

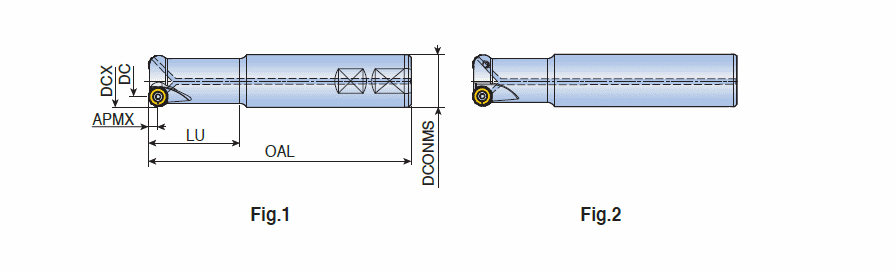

Additional Information	Cutting Diameter (DC/DCX): 25 mm Connection Diameter Machine Side (DCONMS): 25 mm Cutting Diameter (DC): 25 mm Master Insert Identification (MIID): RNMU 1004-ML Cutting Item Count (CICT): 2 Head Length (LH): 60 mm Depth of Cut Maximum (APMX): 5 mm Measurement Type: Metric Overall Length (OAL): 160 mm Body Material: Steel Shank Type: Round Unit: M Application:, Facing, Helical Interpolation, Profiling, Rampdown

Brand

Taegutec
