Taegutec TERNS 340-M16-12

Product Code: 3108511

$608.00$552.73 Ex. GST

Product Code: 3108511 SKU 3108511 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

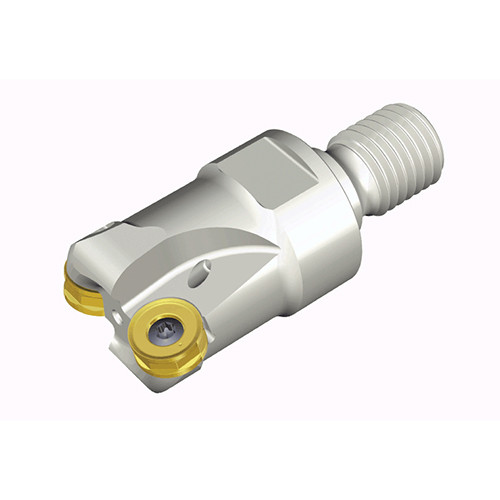

Modular end mills with T-FLEXTEC adaptation and double-sided round inserts of RUMU for general profiling and Die & Mold industry

Weight	0.3450 kg
Dimensions
barcode

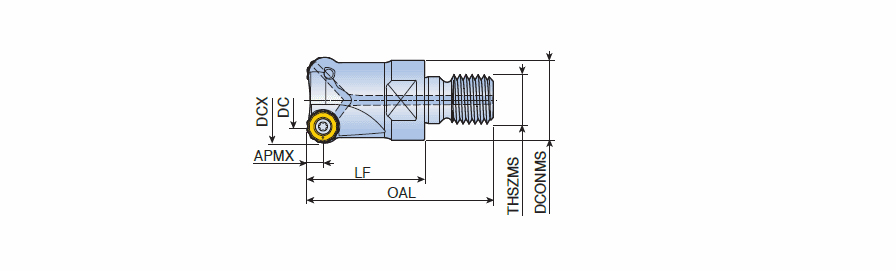

Additional Information	Cutting Diameter (DC/DCX): 40 mm Master Insert Identification (MIID): RNMU 1205-ML Cutting Diameter (DC): 40 mm Head Length (LH): 43 mm Cutting Item Count (CICT): 3 Connection Thread Nominal Size Machine Side (THSZMS): M16 Depth of Cut Maximum (APMX): 6 mm Measurement Type: Metric Overall Length (OAL): 68 mm Body Material: Steel Application:, Facing, Helical Interpolation, Profiling, Rampdown, Unit: M
