Taegutec TERNS 550-32-12-L250

Product Code: 3112405

$1,051.45$955.86 Ex. GST

Product Code: 3112405 SKU 3112405 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

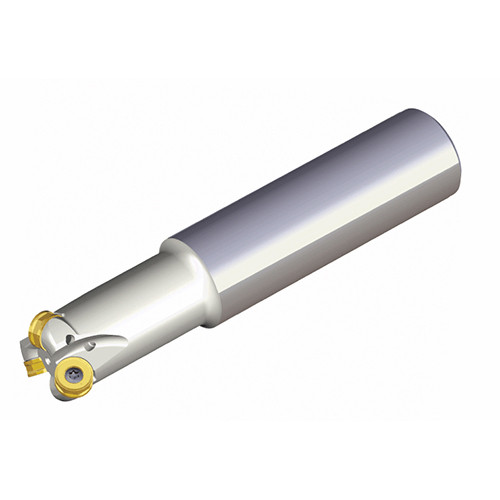

End mills with double-sided round inserts of RNMU for general and Die & Mold application

Weight	1.7650 kg
Dimensions
barcode

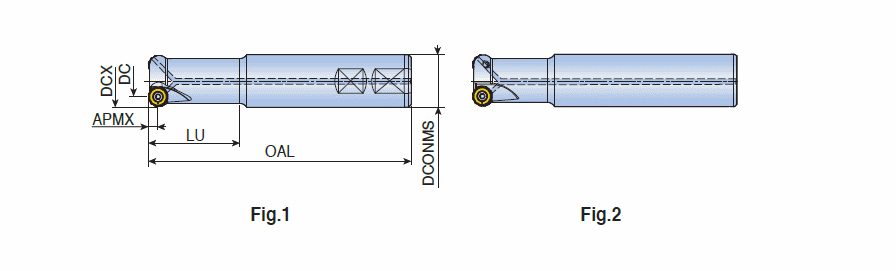

Additional Information	Cutting Diameter (DC/DCX): 50 mm Connection Diameter Machine Side (DCONMS): 32 mm Cutting Diameter (DC): 50 mm Master Insert Identification (MIID): RNMU 1205-ML Cutting Item Count (CICT): 5 Head Length (LH): 60 mm Depth of Cut Maximum (APMX): 6 mm Measurement Type: Metric Overall Length (OAL): 250 mm Body Material: Steel Shank Type: Round Unit: M Application:, Facing, Helical Interpolation, Profiling, Rampdown
