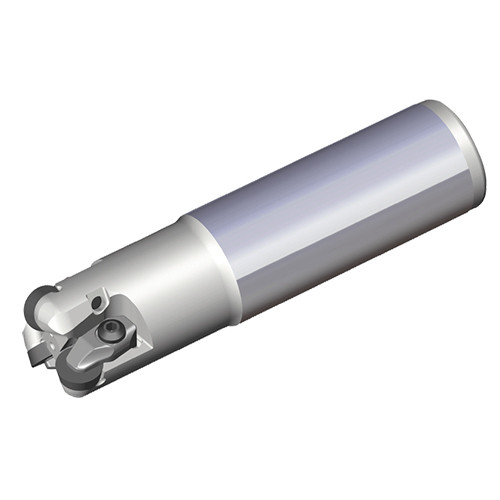

End mills with positive round RPGN 09 ceramic inserts & clamp for high speed profiling of super alloys
Additional information
Weight
0.7050 kg
Dimensions
barcode
Additional Information

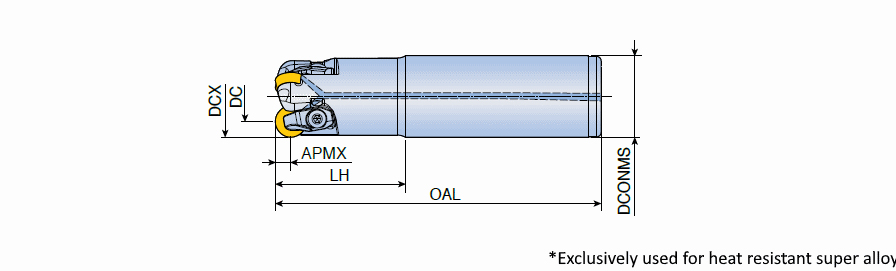

Cutting Diameter (DC/DCX): 32 mm
Connection Diameter Machine Side (DCONMS): 32 mm
Cutting Diameter (DC): 22.5 mm
Master Insert Identification (MIID): RPGN 0903 FL-E04
Cutting Item Count (CICT): 4
Head Length (LH): 40 mm
Depth of Cut Maximum (APMX): 4.7 mm
Measurement Type: Metric
Overall Length (OAL): 120 mm
Body Material: Steel
Shank Type: Round
Cutting Diameter Maximum (DCX): 32 mm

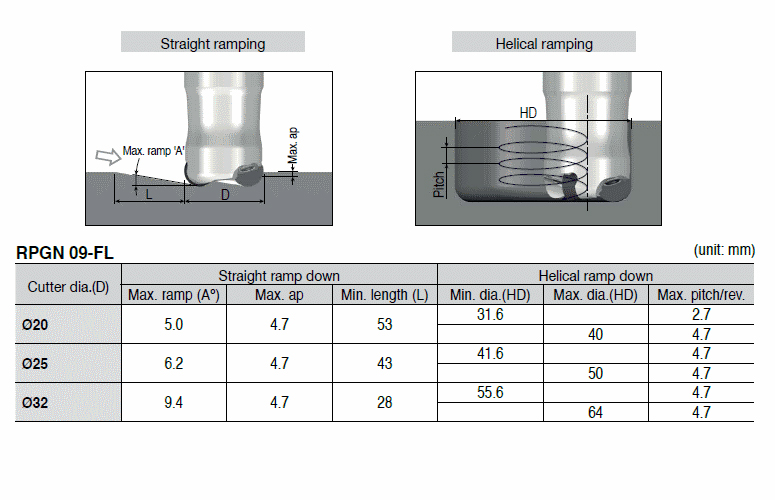

Application:, Facing, Helical Interpolation, Profiling, Rampdown, Unit: M
