Taegutec TERT 432-M16-10

Product Code: 6164680

$450.68$409.71 Ex. GST

Product Code: 6164680 SKU 6164680 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

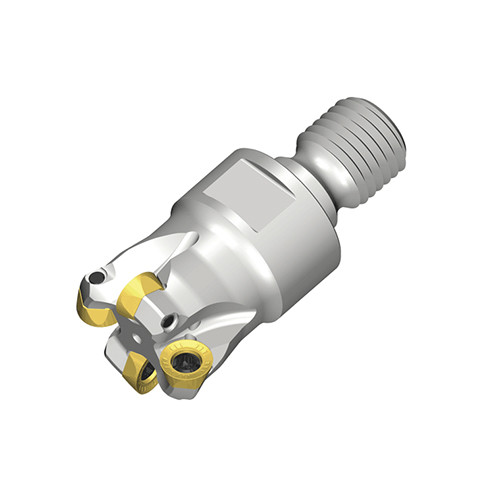

Modular end mills with T-FLEXTEC adaptation & RTM(H)X inserts of five-indexing bottom for exotic materials

Additional information

Weight 0.2800 kg
Dimensions
barcode
Additional Information

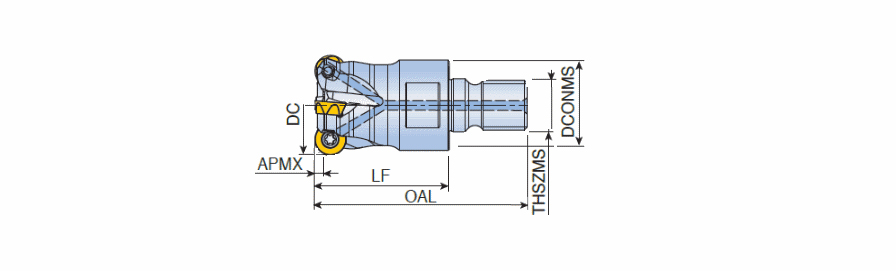

Cutting Diameter (DC/DCX): 32 mm
Master Insert Identification (MIID): ‎RTMX 1004-5MM
Cutting Diameter (DC): 32 mm
Head Length (LH): 43 mm
Cutting Item Count (CICT): 4
Connection Thread Nominal Size Machine Side (THSZMS): M16
Depth of Cut Maximum (APMX): 5 mm
Measurement Type: Metric
Overall Length (OAL): 68 mm
Body Material: Steel
Application:, Facing, Helical Interpolation, Profiling, Rampdown, Unit: M

Brand

Taegutec
