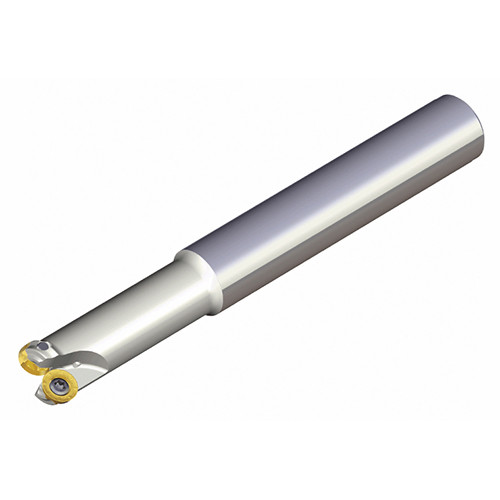

End mills with positive round inserts of RXM(H)X for general profiling
Additional information
Weight
1.4500 kg
Dimensions
barcode
Additional Information

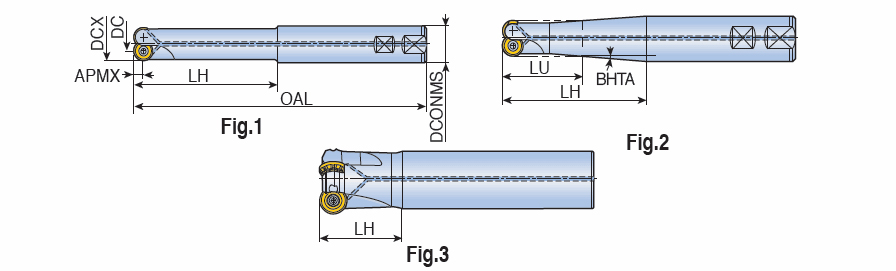

Cutting Diameter (DC/DCX): 25 mm
Master Insert Identification (MIID): RXMX 1003-M
Cutting Diameter (DC): 15 mm
Head Length (LH): 80 mm
Cutting Item Count (CICT): 2
Usable Length (LU): 50 mm
Depth of Cut Maximum (APMX): 5 mm
Body Half Taper Angle (BHTA): 6.8 Degrees
Overall Length (OAL): 250 mm
Measurement Type: Metric
Shank Type: Round
Body Material: Steel
Application:, Facing, Helical Interpolation, Profiling, Rampdown, Cutting Diameter Maximum (DCX): 25 mm
Connection Diameter Machine Side (DCONMS): 32 mm
Unit: M
